Ultra clear X-ray detector (Industrial type)

Ultra-clear X-ray detector (industrial type) mainly for electronic products, electronic components, GPA packaging, aluminum castings, plastic parts, heating elements like tubular or cartridge Heaters, circuit boards and other products internal structure detection. The instrument uses a flat panel to image, and uses Phi 0.01 microfocus ray tube set to constrain scattering lines. Easy to use, safe and reliable. The machine can be used alone or placed in a special lead box. Use (there is a matching connecting line in the lead box to the outside of the box, no radiation leakage will occur).

Application

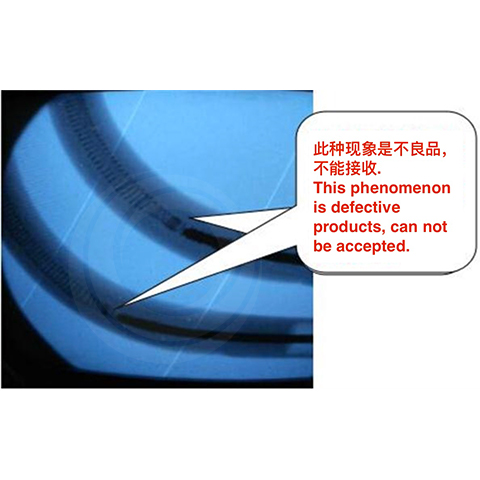

1. In the production of heating element, it can be check whether the Resistance Wire is virtual welding, breakpoint, deformed structure, etc.
2. Thermal resistance, thermistor, semiconductor package original, BGA, IC chip, PCBA, LED, IGBT, electronic integrated components, capacitors, thermistors, sensors, electronic components, integrated circuits, microelectronic sealing components, circuit boards and other internal structures are shifted, broken, cracked, air welding, virtual welding.
3. Inspection of pores, bubbles and pore sizes of castings and injection parts.
4. Whether there are metal foreign objects in shoes, bags or toys.
5. Non-destructive testing of wire plugs, auto parts, etc.

Instrument characteristics

1. No need dark room, no protection, synchronous display viewing;
2. High gain, high sensitivity, high spatial resolution, short response time;
3. Simple structure, small size, light weight, portable use;
4. Low dose, safe and reliable, easy to operate;
5. Image synchronization lock, optional video interface: AV output interface, can be connected to the computer, TV and other video output.
6. The image quality can be adjusted according to the thickness of the perspective object, and the magnification function can make the image detected by the product more accurate and clear.
7. It can penetrate the metal surface to see the size, shape and quantity of the internal object, such as copper pipe, iron pipe, aluminum pipe, plastic pipe, etc. It can observe the tiny structure with a diameter of 0.1 mm.
8. The internal use of imported parts, so that the image can not be compared with the same industry models

Technical Parameter

1. Field of view: Φ80mm; (or can be customized on request)
2. Resolution: 36llp/cm
3. Output screen brightness: > 30cd/cm2
4. Maximum spacing: 280mm
5. Tube voltage: 45-75kv
6. Tube target flow: 0.2-0.5mA
7. Contrast ratio: 4%
8. Grayscale: Level 7
9. Leakage radiation: < 1mGy/h
10. Weight: 5kg
11. Power consumption: 50W
12. Power supply: 220VAC
