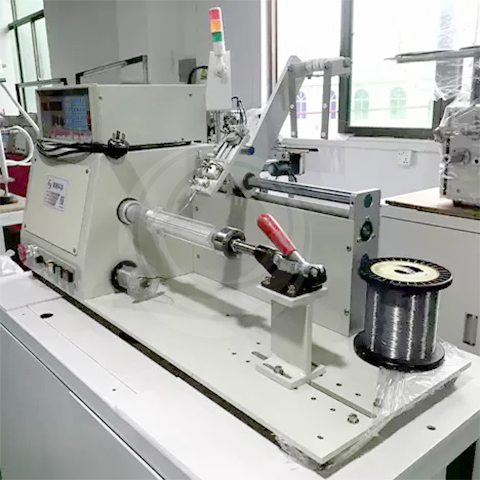

Coil Winding Machine for Anti Mosquito lamp

Application

Automatic Winding Machine product scope of application: Mosquito lamp coil, electronic clock coil, electronic gift coil, electronic lock induction coil, mobile phone vibration motor coil, animal ear tag induction coil, various voice coils for headphones and speakers, card reader coil, ID/IC automatic coin-operated device coil, camera coil, digital camera zoom coil, laser head coil, special magnetic head coil, wireless electromagnetic free mouse and mouse pad coil, automatic coin-operated coil, hearing aid coil, attendance machine coil, solar rotary table coil, solar pendulum coil, coin-operated detector coil and brushless flat motor coil, etc.

Specification

Characteristic

1. The main parts are A3 materials.
2. Other aluminum anodes are oxidized.
3. Controller, spindle motor, wiring motor come from Shenzhen Lesai Technology.
4. The power supply circuit adopts improved anti-interference circuit with stable performance.
5. The winding axis adopts a closed circuit with electronic velocity feedback, and the speed is constant, which does not change with the mains power or load.
6. The axis of spool is driven by sevo-motor.
7. The axis of spool is controlled by microcomputer chip alone, which has better synchronization with the winding motor, fast wiring speed and high precision.
8. The starting position and width of the spool can be input by teaching when editing, and the current position of the spool can be displayed.
9. Data storage total of 1000 cases from 0 to 999.
10. Each time the data is adjusted, the validity and accuracy of the data will be tested to protect the winding equipment and prevent the winding error
11. A three-phase brushless DC motor drive system is integrated in the controller, making installation and maintenance easier.
