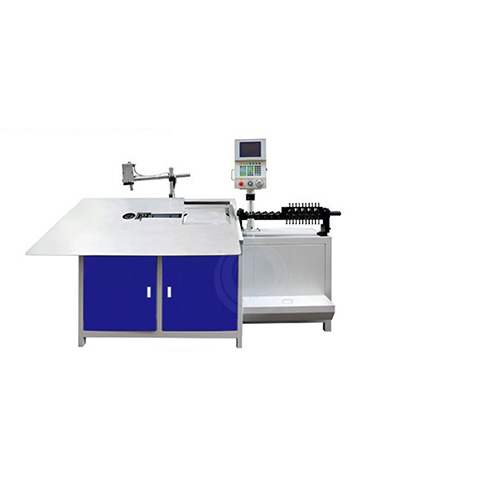

It can be straightened, cut off, no interference, and it can be pushed and bent, finished at one time, unmanned operation, efficiency is 4-5 times that of traditional models.
By machine instead of manual, without straightening the material, without opening the mold can be produced. Whatever shape you need to bend, as long as it is on a flat surface, our Machines can meet your needs.
Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, Flat Wire), making (bending) square, round, hexagonal, curved surfaces with irregular shapes and various flat buckles, various hooks, etc.
| Model/Wire Diameter | WX03-6(2.5~6mm） | WX03-8(3~8mm） | WX03-12(4~12mm）（12, it's a little slower than that） | |
| Electrical Voltage | Three-phase 380V+ ground cable | Three-phase 380V+ ground cable | Three-phase 380V+ ground cable | |
| Straightening Profile | 22 sets (made of national standard Cr12) | 22 sets (made of national standard Cr12) | 28 sets (made of national standard Cr12) | |
| Bending Die | All of them are finished with high-quality material SKD11/51, with a hardness of 58-62° | All of them are finished with high-quality material SKD11/51, with a hardness of 58-62° | All of them are finished with high-quality material SKD11/51, with a hardness of 58-62° | |
| Number of Wire Feeding Wheels | 3 groups (line feed wheel using national standard Cr12, fine polishing heat treatment hardness of 58°, wear resistance) | 3 groups (line feed wheel using national standard Cr12, fine polishing heat treatment hardness of 58°, wear resistance) | 4 groups (line feed wheel using national standard Cr12, fine polishing heat treatment hardness of 58°, wear resistance) | |
| Number of Rollers | 3 rollers | 3 rollers | 3 rollers | |
| Total Power of Servo Motor | 4.8kw | 4.8KW (High torque) | 6.9kw | |
| Feed Line Servo Motor Power | 2.3kw | 2.3KW Tape reduction | 2.3KW Tape reduction | |
| Bending Servo Motor Power | 1.5kw | 1.5KW Tape reduction | 2.3KW Tape reduction | |
| Cutter Servo Motor Power | 1.0kw | 1.0kw | 2.3KW Tape reduction | |
| Cutting Force of The Cutter | φ6 wire (flexible wire) | φ8 wire (flexible wire) | φ10、φ12 wire (flexible wire) | |
| Applicable Wire | Round wire, flat wire, square wire (applicable to any material wire) | Round wire, flat wire, square wire (applicable to any material wire) | Round wire, flat wire, square wire (applicable to any material wire) | |
| Applicable Wire Range | 2.5-6mm Wire standard | 3-8mm Wire standard | 4-12mm Wire standard | |
| Store | 10000 sets of data, 300 actions for 1 group | 10000 sets of data, 300 actions for 1 group | 10000 sets of data, 300 actions for 1 group | |
| Wire Feed Speed | Max. 90m/min | Max. 24m/min | Max.18 m/min | |
| Max. Bending Speed | 300 RPM /min, Angle ±180° | 300 RPM /min, Angle ±180° | 300 RPM /min, Angle ±180° | |
| Direction of Action | Internal mold - Move down/up Outer mold - Move down/up 360° forward and backward | Internal mold - Move down/up Outer mold - Move down/up 360° forward and backward | Internal mold - Move down/up Outer mold - Move down/up 360° forward and backward | |
| Efficiency | 20-25 PCS /min (200*200 box as sample) | 20-25 PCS /min (200*200 box as sample) | 8-10 PCS /min (200*200 box as sample) | |
| Bending Accuracy | ±0.5° | ±0.5° | ±0.5° | |
| Wire Feed Accuracy | ±0.5mm | ±0.5mm | ±0.5mm | |
| Pneumatic system | Air Cylinder | 3 pieces | 3 pieces | 3 pieces |
| Solenoid Valve | 3 pieces | 3 pieces | 3 pieces | |
| Servo System | Language System | English/Chinese (system with upload and download function) | English/Chinese (system with upload and download function) | English/Chinese (system with upload and download function) |
| Control Panel | Touch screen + Button | Touch screen + Button | Touch screen + Button | |
| Control Module | 32-bit high performance processor | 32-bit high performance processor | 32-bit high performance processor | |
| Dimension | 2800*850*1500 | 2800*850*1500 | 3150*785 约1800 | |
| Machine Weight | 1100KG | 1200KG | 1500KG | |
