Center the element automatically , assure the parallelism of bended tubes.

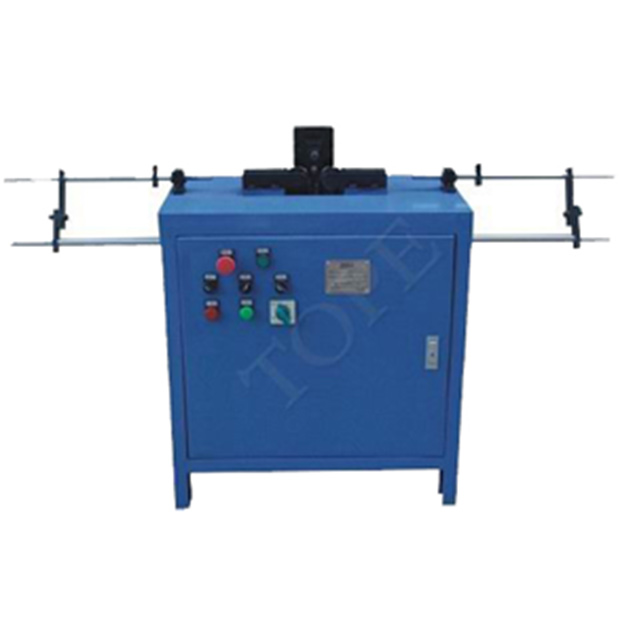

Pneumatic(WG02-Q) or(WG02-Y) hydraulic bending, high efficiency
Bend up side, save space.
Main Models
Model
WG02-Q
WG02-Y
Power supply
Single-pahse 220V,50Hz, 200W
Tri-phase 380V,50Hz 1.5KW
Air supply
5~7kgs/cm2
Tube diameter(mm)
φ 6~ φ 12
φ 6~ φ 12
Tube length(mm)
200~1000
200~1000
Efficiency(8h)
5000pcs~6000pcs
6000~8000pcs
Size（L＊W＊H）mm
2000*80*80
3000*650*1080
Weight(kgs)
150
450

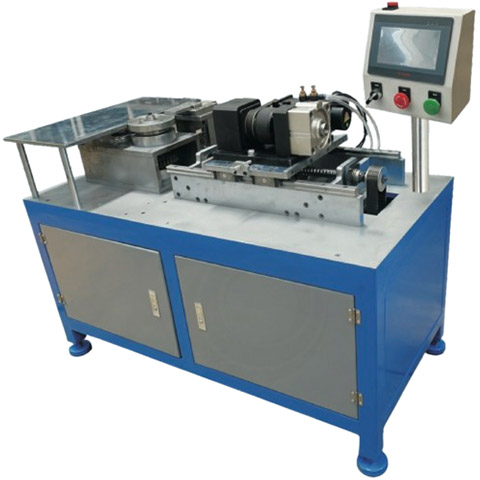

U | Q Shape Bending Machine WG02-UQ
The U/Q-shaped tube bending machine is specifically designed for bending single or multiple bends into Q-shape, U-shape, M-shape, W-shape, or similar forms. The machine utilizes servo motors to control various structures and is driven by either a hydraulic system or a geared motor. It is controlled by a PLC system and operated via a touchscreen interface. Manual loading and automatic feeding and completing the entire bending process.
Features:
This machine offers a wide bending range by simply changing the mold, it can bend the tubes into various shapes, helping users save both cost and workshop space.
Videos:
Video： U shape Hydraulic Bending Machine WG02-Y
Video： U shape Bending Machine WG02
