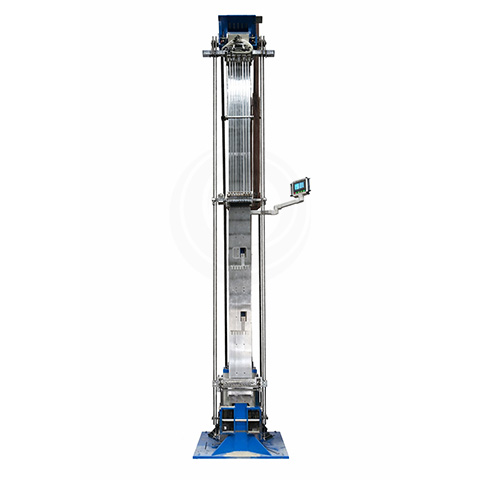

MgO powder filling machine |Dust-free& Three filling tubes | TF03H

Main structure and characteristics

The dust-free Mgo Powder Filling Machine with three filling tubes is a new type, also known as an environment-friendly filling machine. It is designed and manufactured with reference to the characteristics of similar imported Machines. It is currently an ideal model for making tubes with large diameter or length.

Features

The biggest feature of the new dust-free MgO powder filling machine is that it can be used to install and fill tubes of different specifications simultaneously. During the operation, only the specific tubes are filled as needed, and the other stations are not affected. It is a new MgO powder filling machine that possees the advantages of both domestic and imported filling machines.

Technical parameters

1. Working stations：48、36、24、12, etc.
2. Length of tubes（mm）：300—10000
3. Diameter of tubes（mm）：7.5—42
4. Tubes of multiple sizes can be filled at the same time

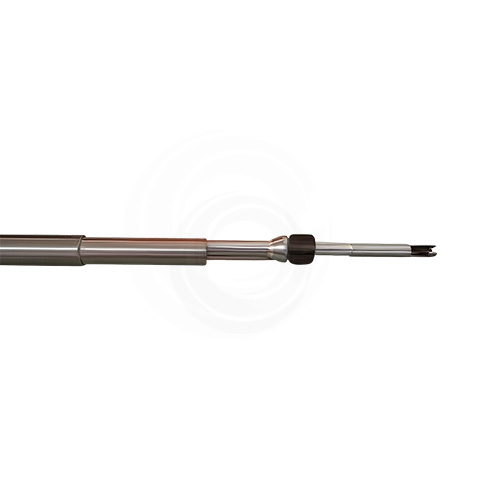

5. Filling structure：Three filling tubes (two inner tubes and one casing tube to ensure the filling precision and efficiency)
6. Controlling method：Servo motor or universal motor
7. Vibrating method：Mechanical vibration/ Electromagnetic vibration
8. Efficiency：1000—5000 pcs/8h（1meter）
9. Source de tension/gas：Three phase 380V/Three phase 220V/Single phase 220V/0.6Mpa
10. Rate：1100W
11. Machine size（mm）；（1 meter machine）3500*1600*800
12. Weight：700KGS
