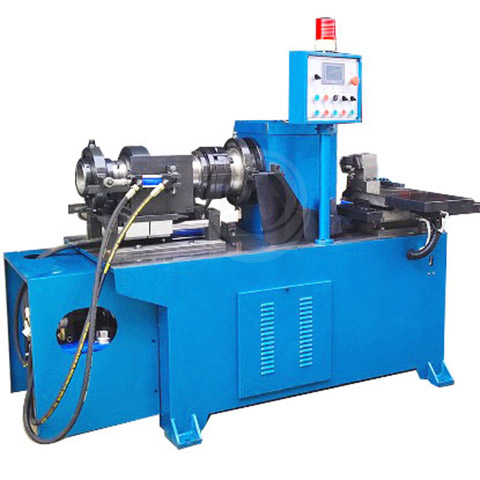

Thick Tube Rotary Cutting Machine, Without Burrs, Wall Thickness ≤8mm

Main features

The fully automatic Tube Cutting Machine is suitable for cutting various tube materials, especially suitable for mass production of steel tube cutting enterprises. This machine tool adopts PLC control, advanced servo system positioning and cutting, and can feed multiple pieces for cutting at one time. It has high precision and efficiency. The machine tool detects each cutting workpiece, which makes up for the lack of feeding of oil, rust, and bent materials by previous machine tools. The disadvantage of rebounding after feeding is eliminated, and the appearance of waste products is eliminated. According to the cutting rhythm of 90*4*50 iron pipe, 10-12 pieces/min
The tube cutting machine has knife breakage and no material alarms.
The tube cutting machine adopts cross Roller quenching guide rail, which has the characteristics of good rigidity, low rolling friction and long service life.
Both vertical and horizontal directions adopt servo system feeding, which has the characteristics of fast response and stable feeding. Longitudinal servo positioning.

Type: Automatic pipe cutting machine	Brand：TOPE	Control form：PLC
Model：QG02-100	Main Motor Power：5.5（kw）	Overall Dimension 225012001500：
Machining Accuracy：±0.1	Working length：5-300（mm）	Maximum machining diameter：100（mm）
Maximum Turning Diameter：100（mm）	Spindle Speed Series: stepless speed change	Cutting wall thickness：0.5-8mm
Feeding Method: Oil Cylinder	Cooling method: air cooling	Scope of application: steel pipe cutting
Power Type: Mechanical transmission	Cutting diameter range：40-100（mm）	Chamfer mode: servo
Positioning Mode: servo motor	Feed mode: servo motor	Clamping mode: hydraulic
PLC Brand: Huichuan (Listed company)	Servo: Huichuan (listed company)	Low voltage electric: Chint
