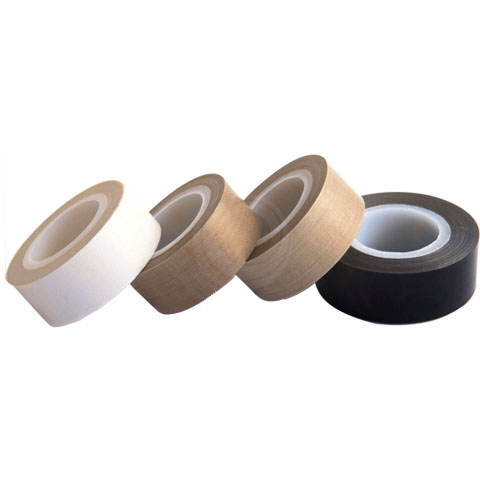

Teflon Tape with Fiber Glass| High-temperature Tape

Teflon tape, also known as polytetrafluoroethylene glass fiber tape, is made of imported glass fiber yarn coated with polytetrafluoroethylene (PTFE) resin to make polytetrafluoroethylene high-temperature cloth, and then a layer of organic silicon high-temperature pressure-sensitive adhesive is applied on the surface of the polytetrafluoroethylene high-temperature cloth to produce polytetrafluoroethylene glass fiber tape. It can be used repeatedly and is easy to replace. The fabric-reinforced PTFE Teflon tape has higher strength.

Application

1. Various high-temperature rollers, heating plates, and thermoplastic demolding workpieces with Teflon wrapped around the surface to prevent sticking;
2. Heat sealing of food, medicine and plastic bags.
3. Paste the liner of chute, hopper, aviation mold, etc.
4. Wire wrap insulation for high temperature protection.
5. Packaging, thermoplastics, composites, sealing, electrical and electronic industries and so on.
6. Other surface treatments that require anti-sticking, corrosion resistance and high temperature resistance

Technical Parameters

Conventional 0.18mm PTFE fiberglass tape is basically composed of 0.10mm glass fiber cloth + 0.03mm PTFE coating + 0.05mm high temperature pressure sensitive adhesive. Its basic parameters are as follows:

General Specifications of PTFE Tape

1. The standard width is 1m or 1.25m, with yellow release paper, the length is generally 50m, and the length of the small roll without release paper is generally 10m, which can be slit into small specifications with high precision.
2. The tape thickness range is 0.13mm~0.40mm and can be produced.
3. The colors are generally brown, black, and white.
