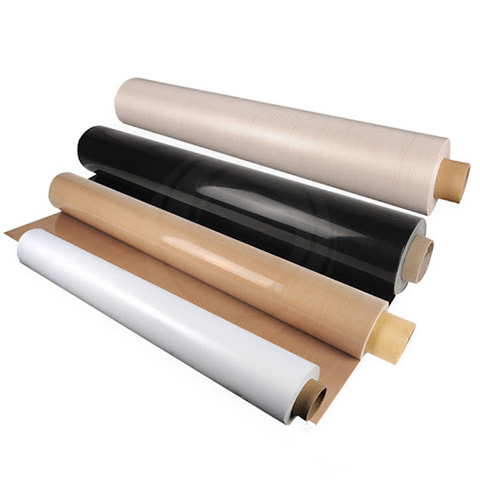

Teflon Cloth

Teflon cloth or belt (PTFE cloth), is the use of high quality imported glass fiber cloth as the substrate, through the unique processing technology, repeatedly fully impregnated, coated with high quality Teflon resin, the production of various thickness of Teflon high temperature coated cloth. Mainly used for low temperature -70°C, high temperature 260°C between, with weather resistance, anti-aging.

Main feature

1. Non-adhesive: It is not easy to adhere to any substance. Easy to clean all kinds of oil stains, stains or other attachments attached to its surface.
2. Resistance to bending fatigue, can be used for smaller wheel diameter.
3. Chemical corrosion resistance, resistant to strong acid, alkali, aqua regia and various organic solvent corrosion.
4. Low friction coefficient (0.05-0.1), is the best choice for oil-free self-lubrication.
5. Light transmittance of 6 ~ 13%.
6. With high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), anti-ultraviolet, anti-static.
7. Good dimensional stability (elongation coefficient less than 5%), high strength. It has good mechanical properties.
8. Drug resistance, non-toxic. Resistant to almost all pharmaceutical items.
9. Fire and flame retardant.

Application

1. Anti-stick lining, gasket, cloth and conveyor belt; According to the different thickness, it is used for various drying machinery conveyor belts, bonding belts, sealing belts, etc.
2. Welding of plastic products, welding cloth for sealing; Plastic sheet, film, heat seal sheet lining.
3. High electrical insulation: electrical insulation tape base, spacer, gasket, bushing.
4. Microwave gasket, oven sheet, food drying;
5. Solar laminate high temperature cloth (generally 0.25mm thickness, 0.30mm, 0.35mm, width of 2.2m)

Product specification
