Automatic Stripping And Winding Machine For Heat Trace Cable: A Powerful Industrial Tool with High Efficiency and Precision

In the modern electric heating cable manufacturing industry, achieving a perfect combination of efficient stripping and precise winding is key to increasing production capacity. The heat trace cable stripping and winding machine is a fully automated solution specifically designed for heat trace cable manufacturing. It consists of three core parts: a wire feeding mechanism, a wire winding mechanism, and a wire take-up mechanism. This significantly saves workshop space while ensuring stability and visibility during operation .

I. Main Technical Parameters

This winding machine, with its highly adjustable software control system, can meet the production needs of various specifications of heat trace cables.

1. Ultimate winding speed : The maximum winding speed can reach [number] times per minute. 2000prm .
2. High output : When the winding pitch is set to 0.7mm , the output speed can reach [per hour]. 84 meters .
3. Flexible performance adjustment :
   • Winding parameters : The winding speed pulse count ( 0-66666 ) and winding pitch ( 0-999mm ) can be flexibly adjusted via the touch screen .
   • Peeling precision : The peeling spacing is adjustable within a certain range via software. 101-9999mm , the peeling and biting depth can be manually fine-tuned according to the thickness of the thread .
4. Pneumatics and timing control : The engagement time of the cutting cylinder ( 2-10s ) and the air blowing time after cutting ( 1-20s ) can be flexibly set via the touch screen to ensure a clean and crisp cutting process .

II . Powerful cable reeling and laying system

To ensure long-term stable operation, the equipment has undergone in-depth optimization in terms of mechanical strength and control :

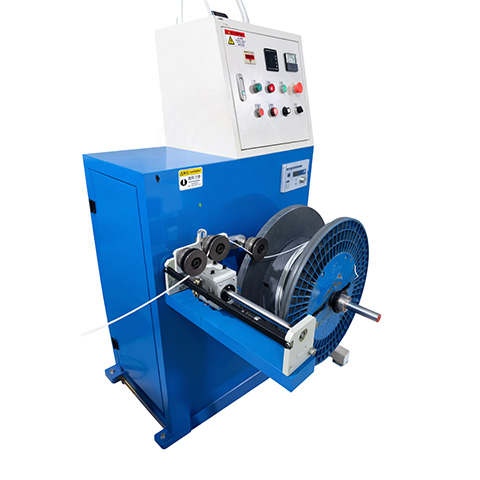

1. Tension control: The take-up mechanism is equipped with a tension controller with an adjustment range of 0-100%, effectively preventing thin lines from breaking or thick lines from becoming loose.
2. Heavy load capacity: adjustable winding speed (0-120rpm), spool thickness 30mm, maximum load capacity up to 60KG, maximum spool width supported up to 330mm.

III . Mechanism Dimensions

This fully automated system consists of three independently operating physical modules, with the following specific dimensions :

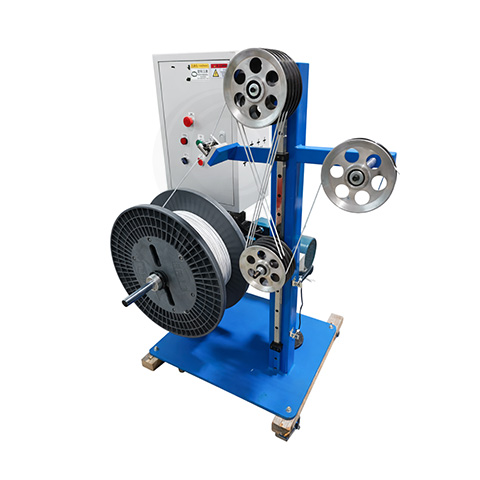

Wire feeding mechanism: 1170 * 920 * 1300mm

Winding mechanism: 1800 * 720 * 1390mm

Recruiting mechanism: 1050 * 1100 * 1570mm

IV. Why choose a fully automatic stripping and winding machine?

1. Improved consistency: Through PLC pulse control and software adjustment, spacing errors caused by manual operation are eliminated, ensuring the consistency of each meter of heat trace cable.
2. Reduced labor costs: Fully automated operation reduces manual intervention in peeling and cutting processes, significantly reducing labor intensity.
3. Safe and reliable: The equipment is equipped with an intuitive touch screen interface and an emergency stop button to ensure safe and controlled production process.
