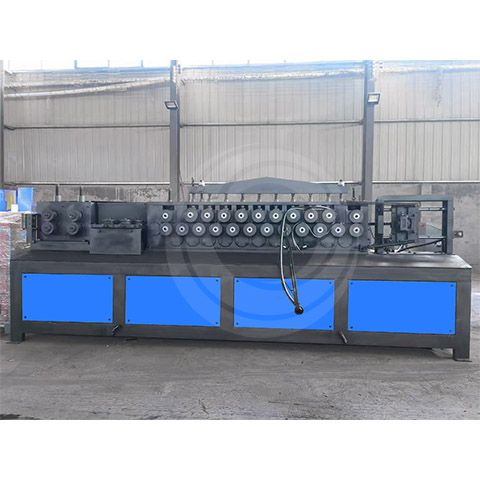

Rod | Bar Straightening Machine |Vertical Roller
Rod or bar straightening machine is a kind of equipment used to straighten and cut coiled steel (such as rod, wire, steel wire, etc.) into lengths. It is widely used in construction, hardware, steel bar processing, auto parts, metal products and other industries.
NO. | Model | Straightening Range | Straightening Speed | Cut-off Length | Curvature after Straightening | Gross Power | ||
Min. Diameter | Max. Diameter | Yield Limit | ||||||
mm | mm | Mpa | m/min | m | m/mm | kw | ||
1 | XZ06-4 | 1 | 4 | ≤540 | ≤18 | ≥0.1 | ≤1 | 2.95 |
2 | XZ06-6 | 2 | 6 | 4.5 | ||||
3 | XZ06-8 | 4 | 8 | ≤24 | 9 | |||
4 | XZ06-12 | 6 | 12 | 13.2 | ||||
5 | XZ06-16 | 8 | 16 | ≤18 | ≥0.5 | 25 | ||
6 | XZ06-20 | 12 | 20 | 43.5 | ||||
7 | XZ06-25 | 16 | 25 | 65 | ||||
8 | XZ06-30 | 20 | 30 | 86 |
Cut-off Mode | Hydraulic cut-off |
Cut-off Length | 0-99m |
Aligning Speed | 0-90m/min, Output: Ø6-ø8 2T/ hour, Ø10-ø14 3T/ hour |
Cut-off Error | ±2cm |
Power-saving Mode | Frequency Conversion |
Power Source | 380V/50H three-phase AC |
Aligning Machine | 22KW |
Cut-out Motor | 11kw |
Reduction Gear | ZQ25 |
Straightening Wheel Diameter | 150mm |
Straightening Wheel Thickness | 45mm |
Wheel Material | Chromium 12 |
Control System | PLC |
Operating System | Specific |
Blanking Rack | Selectable |
Overall Size | 4500mm*1400mm*1400mm |
Equipment Weight | 2200kg |
