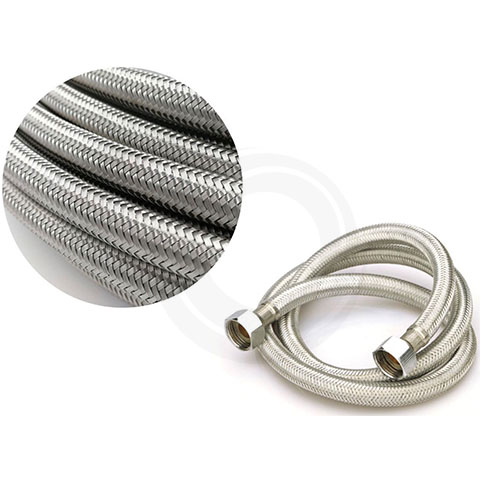

Stainless steel braided mesh tube is usually braided by 304/316 stainless steel wire, which has good wear resistance, prevents wire cuts, scratches, and has good protection for wires. It has the characteristics of high temperature resistance, corrosion resistance, noise reduction, shielding, filtering performance, high elasticity, long service life and so on.
Size Specification
Model
Width(W)
Extended Range
Package (L)
inch
mm
Min.(I)
Max.(O)
S7667
1/16"
2
2
4
1000 m/roll
S7668
1/8"
3
3
6
1000 m/roll
S7669
3/16"
5
5
10
1000 m/roll
S7670
1/4"
6
6
12
500 m/roll
S7671
5/16"
8
8
16
500 m/roll
S7672
3/8"
10
10
20
500 m/roll
S7673
1/2"
12
12
24
350 m/roll
S7674
9/16"
14
14
28
350 m/roll
S7675
5/8"
16
16
32
350 m/roll
S7676
3/4"
19
19
38
250 m/roll
S7677
7/8"
22
22
44
250 m/roll
S7678
1"
25
25
50
100 m/roll
S7679
19/16"
30
30
60
100 m/roll
S7680
11/8"
35
35
70
100 m/roll
S7681
25/16"
40
40
80
100 m/roll
S7682
2"
50
50
100
100 m/roll
S7683
19/8"
60
60
120
50 m/roll
S7684
11/4"
70
70
140
50 m/roll
S7685
25/8"
80
80
160
50 m/roll
S7686
7/2"
90
90
180
50 m/roll
S7687
31/8"
100
100
200
50 m/roll
Unit:mm
Remarks:
The width refers to the width of the mash tube in its natural state.
The mash tube is extensible, and the following specifications are the same :16mm=15mm, 19mm=20mm, 32mm=30mm, 38mm=40mm, 51mm=50mm, 60mm=65mm, 90mm=95mm, 100mm=110mm,and so on, the wider the width, the greater the error allowed by default.
Special packaging, special colors, and product width parameters not listed in the table can be customized according to customer requirements.
Please refer to the sample confirmation for detailed product parameters.
Technical Parameter
Material
Stainless Steel 304/316
Working Temperature
-50°C---200°C
Certification
RoHS、REACH
Color
Silver
Cutting Tool
Cutters or scissors
Product Application
Products are widely used in petroleum, chemical, light industry, medicine, metallurgy, aerospace, ships, automobiles, machinery and equipment to play a muffling shock absorption, shielding signal and other functions, can also be used in pressure vessels, drying towers, absorption towers, desulfurization towers, environmental protection projects in water, fog and dust removal; Or used for filtration, catalyst, distillation, evaporation, absorption and other processes to separate vapor-liquid, water separation.
