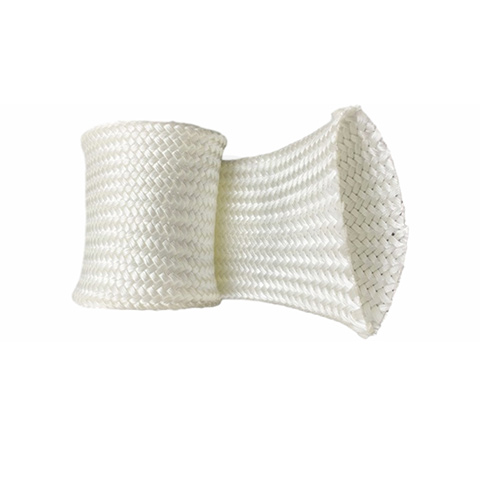

Silica Fiber Sleeving, Temperature Resistant to 1000 Degrees
The Silica Sleeving is woven from high-purity imported high-silica fiber, which has excellent properties such as smoothness, softness, high temperature resistance, fire prevention, heat insulation, and insulation.
The SiO2 content of Silica Sleeving reaches more than 96%. The product has excellent heat resistance and can be used in an environment of 1000°C for a long time. The instantaneous heat resistance temperature can reach 1400°C. It uses Na2O-B2O3-SiO2 ternary system glass raw material. After acid treatment, its softening point temperature is 1700 degrees, this product has excellent chemical stability and good dielectric properties, and can be coated according to customer requirements.
Advantages of Silica Sleeving
Complete isolation from splash and flame
Sustains its strength and ductility under continuous high temperature exposure
In addition to strong acids such as hydrofluoric acid and phosphoric acid, it can withstand a variety of chemical substances
Application of Silica Sleeving
Silica Sleeving is the leader in high-temperature resistant materials and can be used for filtration and purification of molten metal, high-temperature gas dust collection, liquid filtration, fire-proof materials (fire-proof clothing, fire-proof curtains, fire-extinguishing felts, etc.), high-temperature burning materials, and High temperature, heat insulation, heat preservation, sealing materials, high temperature resistant insulation materials, welding heat insulation protection materials, automobile and motorcycle silencers, heat insulation, exhaust gas filtration, etc.
Product Specifications
ID / mm
Single Wall Thickness / mm
Weight g/m
5.0±1.0
0.7±0.2
12 ± 5
8.0±1.6
1.6±0.2
18 ± 5
10.0± 2.0
1.6 ± 0.2
50 ±5
15.0±3.0
1.6±0.2
65±10
20.0 ± 4.0
1.6 ± 0.2
85± 10
25.0 ± 5.0
1.6 ± 0.2
90 ±10
30.0±6.0
1.6 ± 0.2
125± 13
35.0 ±7.0
1.6 ± 0.2
140 ± 14
40.0±10.0
1.6 ± 0.2
170 ± 17
50.0 ±10.0
1.6 ± 0.2
180 ± 20
64.0±10.0
1.6 ± 0.2
255 ± 26
76.0 ±10.0
1.6 ± 0.2
305± 31
80.0±10.0
1.6 ± 0.2
320 ± 32
86.0±10.0
1.6 ± 0.2
345 ± 35
90.0 ± 10.0
1.6 ± 0.2
360±36
96.0 ± 10.0
1.6 ± 0.2
380 ± 38
120.0± 10.0
1.6 ±0.2
480± 48
