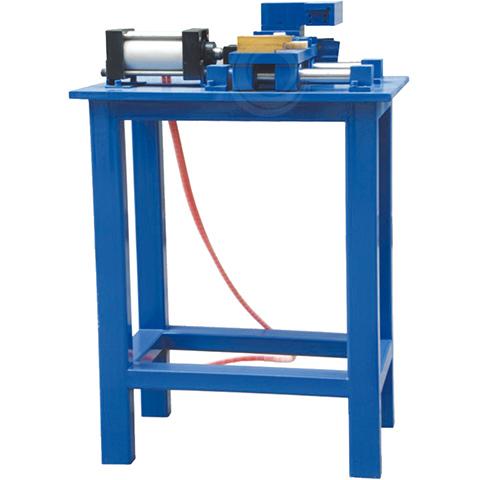

Pneumatic Semi-automatic Marking Machine GY02

The semi-automatic Marking Machine is one of the special equipment for making marks and numbers on the surface of tubes or heating elements.

Main Performance:

1. Cylinder drive, simple operation, no power consumption.
2. Free adjustment of pipe diameter.

Technical Parameters:

1. Air Supply: 4~7kg/cm ² .
2. Applicable Tube Diameter: φ5mm~ φ20mm.
3. Applicable Tube Length: ≥ 100mm
4. Production Efficiency: 5000 ~ 8000 PCS /8h.
5. Size: 600x380x880 (mm).
6. Weight: 100kg.
