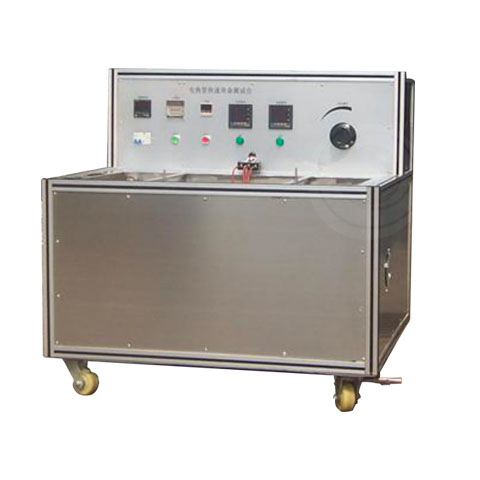

CS03 Rapid Life Testing Machine for Heating Elements

This machine is designed and manufactured for the rapid life test of heating element. The product under test is placed in circulating water for forced cooling and increases the heating power of the product under test. At the same time, the power is turned on and off to accelerate the service life test of the product.The machine Designed with aluminum alloy and stainless steel, it is beautiful and elegant. It is an indispensable Testing Machine for heating element manufacturers, third-party testing institutions, and scientific research units.

Technical Parameters:

1. Isolation test voltage :0~800V adjustable, maximum power 10KVA
2. Voltage test accuracy :0.25% reading +0.25% range
3. Load current test accuracy :0.25% reading +0.25% range
4. On-off time :0~9999 seconds, the on-off time is set to the same
5. On-off times :0~99999 times, power outage maintenance, the number of automatic shutdown
6. Test channel :2 channels and 2 products under test are powered on alternately to save equipment resources
7. Data interface software: the user's computer and the device are connected by RS232, which automatically records the voltage and current of each on-off.
8. Power data, and save according to the number of times, it can query, print, observe the trend curve.
9. Test stainless steel water tank :1000mm long, 500mm deep, 700mm high, about 350 liters equipped with circulating water pump, and external fan forced cooling device.
10. Water tank temperature :0~100°C, accuracy ±2°C, can be set to stop over temperature
11. Protection measures: leakage, short circuit, overload, water temperature overtemperature, low water level alarm
12. Input power :220V, 50/60Hz, 10KVA
13. Equipment size: about 1200mm long depth 930mm high 1200mm, weight about 200kg The bottom of the equipment is equipped with movable brake casters, easy to move.
