Name | Category | Shape | Use | Applications | Wavelength (um) | Color temperature K | Surface temperature |
Shortwave SW | Halogen | Straight Tube Ring Shape C-Shape | Production Lines Fast heating Drying | Drying Channels Yale Ovens | 0.76-1.4 | 2000-2450 | 280-860 |
Medium Wave IR | Halogen Carbon | Heating Medium speed heating Drying | Heaters Drying Channels Ovens | 1.4-4.0 | 800-1800 | 200-780 | |
Far Infrared LW | Halogen Carbon | Heating Physiotherapy Drying | Heaters Physiotherapy Light wave room | Above 2.5 | 680-1380 | 200-620 |
To provide accurate and faster service, please provide drawings and the following data whenever possible.
Lamp Type | Specifications | Heater Shape | Glass Tube Color | Electrode | Porcelain Parts | Requirements for Use |

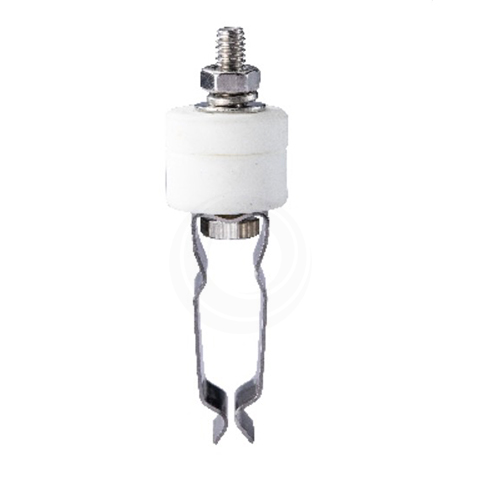

Halogen | Voltage Power Length Heating Length | Pentagram Round Spring-Shaped Band Large Bracket Ring | Transparent Brick Red Rose Red Others | Wire Specification Stainless Steel termianls R7s Fa4 | Open Mouth Porcelain (21*15*9) | Ambient Temperature Horizontal Use Vertical Use |
Carbon | Spiral Shaped |
Note: Can be specially designed and produced according to the requirements of customers.
