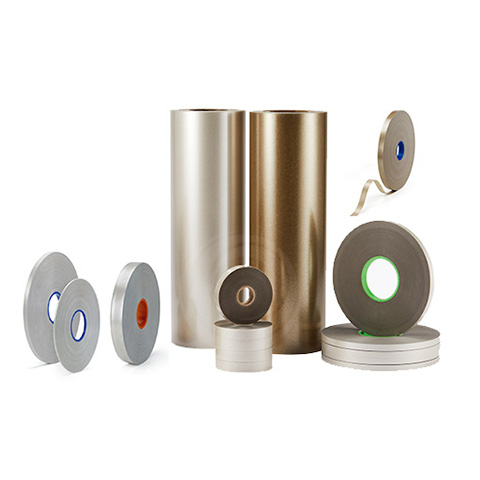

Fire Resistant Cable Phlogopite Tape is a tape or roll insulating refractory material made of phlogopite paper as the base material, fabric, or fiberglass film as the silicone resin bonding and reinforcement material. It can be applied to ordinary fire-resistant wires and Cables, wires, and cables with high temperature resistance requirements, etc.
Pure natural Mica, temperature stable resistance, good flexibility
750-900°C
Type | BJ80G32 | BJ100G32 | BJ120G32 | BJ140G32 | BJ160G32 |
Thickness (mm) | 0.10±0.015 | 0.11±0.015 | 0.125±0.015 | 0.13±0.015 | 0.14±0.015 |
Mica Tape Quantification (g/m 2 ) | 125±9 | 148±9 | 172±11 | 193±11 | Sec. 216±11 |
Mica content (g/m 2 ) | 80±3 | 100±3 | 120±5 | 140±5 | 160±5 |
Glass fibre content (g/m 2 ) | 32±3 | 32±3 | 32±3 | 32±3 | 32±3 |
Film Content (g/m 2 ) | ~ | ~ | ~ | ~ | ~ |
Glue content (g/m 2 ) | 13±3 | Night±3 PM | Sec±3 PM | Sec±3 PM | 24±3 |
Decay resistance (kV/layer) | >1.0 | >1.1 | >1.2 | >1.4 | >1.4 |
Tensile strength (N/cm) | >120 | >120 | >120 | >120 | >120 |
MJ120F25 | MJ160F25 |
0.12±0.015 | 0.14±0.015 |
158±11 | 201±11 |
120±5 | 160±5 |
~ | ~ |
25±3 | 25±3 |
13±3 | Night±3 PM |
>5.0 | >5.5 |
>110 | >120 |
SBJ140GD42 | SBJ160GD42 |
0.15±0.02 | 0.17±0.02 |
202±13 | Sec±13 p.m. |
140±5 | 160±5 |
42±4 | 42±2 |
~ | ~ |
Jan 20±4 | 23±4 PM |
>1.6 | >2.0 |
>120 | >120 |
SHJ120GF46 | SHJ140GF46 | SHJ160GF46 |
0.14±0.02 | 0.15±0.02 | 0.16±0.02 |
181±12 | Sec±12 p.m. 203 | Sec. 226±13 |
120±5 | 140±5 | 160±5 |
Sec±25 AD | Sec±25 AD | Sec±25 AD |
18±2 PM | 18±2 PM | 18±2 PM |
18±3 | Sec±3 PM | 23±4 PM |
>3.0 | >3.0 | >3.0 |
>120 | >120 | >120 |
Calcined Mica Tape for Fire Resistant Cable is a tape or roll insulating refractory material made of calcined Muscovite paper as the base material, fiberglass cloth as the reinforcing material, and organic silicone resin bonding. Single-layer sheath can be used instead of double-layer sheath to meet the fire resistance requirements of cables, especially suitable for the application requirements of ultra-small cross-sectional fire-resistant cables.
Resistance and stability at high temperatures
Good insulation performance at high temperatures
Excellent softness
950-1000°C
Type | DS80G32 | DS100G32 | DS120G32 | DS140G32 |
Thickness (mm) | 0.10±0.015 | 0.12±0.015 | 0.14±0.015 | 0.16±0.015 |
Mica Tape Quantification (g/m 2 ) | 135±10 | 158±10 PM | 181±12 | 204±12 |
Mica content (g/m 2 ) | 80±3 | 100±3 | 120±5 | 140±5 |
Glass fibre content (g/m 2 ) | 32±3 | 32±3 | 32±3 | 32±3 |
Film content (g/m 2 ) | ~ | ~ | ~ | ~ |
Glue content (g/m 2 ) | 23±4 PM | Sec. 26±4 | Sec. 29±4 | 32±4 PM |
Decay resistance (kV/layer) | >1.2 | >1.5 | >1.8 | >2.0 |
Tensile strength (N/cm) | >100 | >120 | >120 | >120 |
It is a high-performance mica tape with special mica paper as the base material, fiberglass fabric as the reinforcement material, and nano inorganic material as the coating, which has more stable performance, better flexibility and fire resistance.
No anti-adherent, no silk, no sticky line, no mica falling off
950-1050 °C
Type | TCZ120GT60 Coated Mica Tape (Paper) | TCB120G28 Coated Mica Tape (Fabric) | TCD120GT60 Calcined mica coated tape | TCH120GT60 Synthetic mica coated tape |
Thickness (mm) | 0.150±0.02 | 0.160±0.02 | 0.150±0.02 | 0.150±0.02 |
Mica Tape Quantification (g/m 2 ) | 200±15 | Sec±15 PM | 200±15 | 200±15 |
Mica content (g/m2) | 120±5 | 120±5 | 120±5 | 120±5 |
Stiffness (N/m) | 25-50 | 25-55 | 25-50 | 25-50 |
Decay resistance (kV/layer) | >2.5 | >3.0 | >2.5 | >2.5 |
Tensile strength (N/cm) | >120 | >120 | >120 | >120 |
Synthetic Mica Tape for Fire Resistant Cable is a tape or roll insulating refractory material made of synthetic mica paper as the base material, fabric or fiberglass film as the reinforcing material and bonding of organic silicone resin. It can be applied to wires and cables with high temperature resistance requirements and flexible flame retardant cables.
Good tensile strength, high temperature resistance, stable performance, good flexibility, excellent fire resistance
950-1000°C
Type | DB80G32 | DB100G32 | DB120G32 | DB140G32 | DB160G32 |
Thickness (mm) | 0.10±0.015 | 0.11±0.015 | 0.125±0.015 | 0.14±0.015 | 0.14±0.015 |
Mica Tape Quantification (g/m 2 ) | 125±10 PM | 148±12 | 173±12 | 193±12 | Sec. 215±12 |
Mica content (g/m 2 ) | 80±3 | 100±5 | 120±5 | 140±5 | 160±5 |
Glass fibre content (g/m 2 ) | 32±3 | 32±3 | 32±3 | 32±3 | 32±3 |
Film content (g/m 2 ) | ~ | ~ | ~ | ~ | ~ |
Glue content (g/m 2 ) | Isaiah 13±4 | 16±4 | Jan 20±4 | Sec. 21±4 | 23±4 PM |
Decay resistance (kV/layer) | >1.0 | >1.2 | >1.4 | >1.5 | >1.5 |
Tensile strength (N/cm) | >120 | >120 | >120 | >120 | >120 |
Type | SB120GD42 | SB140GD42 | SB160GD42 |
Thickness (mm) | 0.15±0.02 | 0.16±0.02 | 0.18±0.02 |
Mica Tape Quantification (g/m 2 ) | 182±13 | 202±13 | Sec±13 p.m. |
Mica content (g/m 2 ) | 120±5 | 140±5 | 160±5 |
Glass fibre content (g/m 2 ) | 42±4 | 42±4 | 42±4 |
Film content (g/m 2 ) | ~ | ~ | ~ |
Glue content (g/m 2 ) | Jan 20±4 | Jan 20±4 | 23±4 PM |
Decay resistance (kV/layer) | >1.4 | >1.6 | >2.0 |
Tensile strength (N/cm) | >120 | >120 | >120 |
Type | SH120GF46 | SH140GF46 | SH160GF46 |
Thickness (mm) | 0.14±0.02 | 0.15±0.02 | 0.16±0.02 |
Mica Tape Quantification (g/m 2 ) | 181±13 | Sec±13 p.m. | Sec. 226±13 |
Mica content (g/m 2 ) | 120±5 | 140±5 | 160±5 |
Glass fibre content (g/m 2 ) | Sec±25 AD | Sec±25 AD | Sec±25 AD |
Film content (g/m 2 ) | 18±2 PM | 18±2 PM | 18±2 PM |
Gummy content (g/m 2 ) | 18±4 | Jan 20±4 | 23±4 PM |
Decay resistance (kV/layer) | >3.0 | >3.0 | >3.0 |
Tensile strength (N/cm) | >120 | >120 | >120 |
