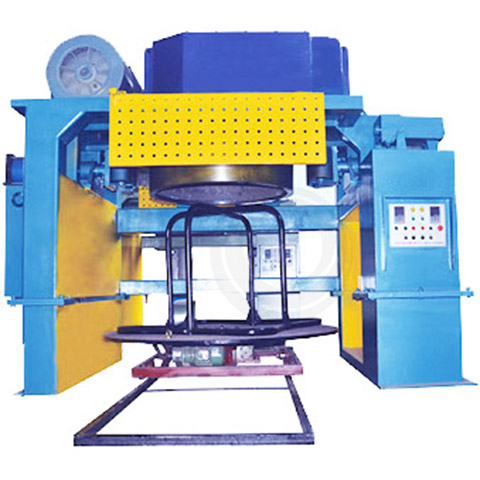

Inverted wire drawing machine
The inverted wire drawing machine is a high-performance device specifically designed for metal wire drawing processes. It integrates wire drawing, traction, and take-up, and is suitable for precision drawing of various metal wires such as stainless steel wire, copper wire, iron wire, aluminum wire, and Alloy Wire. The equipment adopts an inverted structure, ensuring even wire tension during the drawing process, avoiding wire breakage and surface scratches, and guaranteeing the dimensional accuracy and surface finish of the product.
The inverted wire drawing machine adopts a vertically arranged inverted take-up design, allowing the metal wire to fall naturally under gravity during the drawing process, reducing stress concentration. Through high-precision dies and a stable traction system, the coarse wire is gradually drawn into a high-precision fine wire, and then automatically wound into a coil by the take-up system for easy subsequent processing and transportation.
Applicable filaments
- Stainless steel wire ( 304/316L/201 )
- copper wire, brass wire
- Iron wire, carbon steel wire
- Aluminum wire, alloy wire
- Precision metal wire
Main technical parameters
| model | LB02-14 | LB02-12 | LB02-10 | LB02-08 | LB02-06 |
| Drum diameter | (mm) | Φ1400 | Φ1200 | Φ1000 | Φ800 | Φ600 |
| Number of drawing passes | 1 | 1 | 1 | 1 | 1 |
| Wire feeding strength | (mPa) | ≤500 | ≤500 | ≤500 | ≤500 | ≤500 |
| Maximum wire diameter | (mm) | 42 | 30 | 20 | 12 | 8.0 |
| Total compression ratio | (%) | ≤25 | ≤25 | ≤25 | ≤25 | ≤25 |
| Pulling speed ( m/min) | 25 - 35 | 30-40 | 40 - 50 | 50 - 70 | 60-80 |
| Motor power | (Kw) | 110-132 | 75 - 90 | 37 - 75 | 22 - 37 | 15-22 |
| drag and drop | AC frequency converter |
| Remark | The drum diameter can be customized according to user requirements, and the high-carbon wire rod can be fed with a Φ23mm wire. |
Main functions and features
Inverted structure for more stable drawing.
Suitable for continuous drawing of long filaments and large diameter filaments
Maintain constant tension to prevent wire deformation and breakage.
Automatic winding and neat coiling.
The closing system automatically adjusts the closing speed.
The finished silk reels are tight, neat, and knot-free.
Strong traction, adaptable to various metal wires
Stainless steel wire, copper wire, iron wire, and aluminum wire can all be processed.
High-power motors ensure stable drawing of large-diameter wires.
Precise speed regulation and smooth operation
PLC + frequency converter control
Pulling speed is infinitely adjustable
Ensure constant tension and smooth wire surface
Easy mold replacement
The mold base is compact, allowing for quick mold changes.
Supports multi-specification, small-batch production
Robust frame structure, long service life
All-steel welded frame, highly earthquake resistant
Suitable for heavy-duty, continuous production environments
Application industries
- Hardware processing
- Spring wire production
- Home appliance parts
- Automotive parts
- medical devices
- Wire and cable processing
