Inverted Tube Drawing Machine – A High-Efficiency Solution for Tube Drawing and Coiling

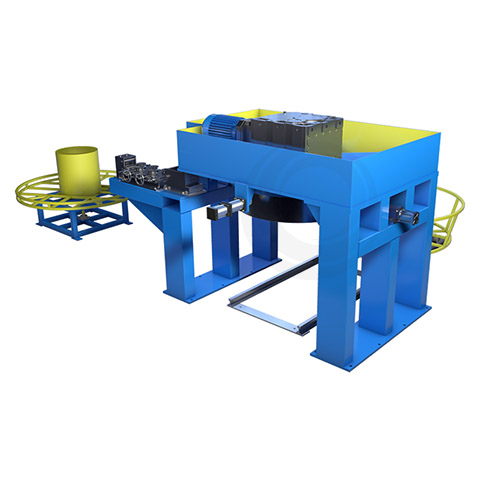

The inverted tube drawing machine is a high-performance device specifically designed for metal tube drawing processes. It integrates drawing, traction, and coiling, and is suitable for the precision drawing and coiling of various Metal Tubes, including stainless steel, copper, iron, and alloy tubes. The machine's inverted structure design maintains stable tension during the drawing process, preventing bending, scratches, and other problems, thus ensuring the dimensional accuracy and surface quality of the final product.
Applicable pipes
- Stainless steel pipes ( 304 / 316L / 201, etc.)
- Copper Tubes and Brass Tubes ( if used in the brass wire industry, oxygen-free Brass Rods can be peeled and stretched; the coiling and drawing machine is equipped with two sets of dies for peeling and stretching).
- Iron pipes, carbon steel pipes
- Aluminum tubes, alloy tubes
- Precision metal tubing
Technical parameters of inverted pipe coiling machine
| Item | unit | LB01-2T | LB01-5T | LB01-15T | LB01-25T |
| Tube diameter | mm | Φ 5~10 | Φ 8~15 | Φ 10~ Φ 28 | Φ 28~ Φ 38 |
| Pulling plate diameter | mm | 1000 | 1200 | 1500 | 2000 |
| Pulling force | 2T | 5T | 15T | 25T |
| Pulling speed | m/Min. | 15-30 meters / min(frequency adjustable) | 40-60 meters / min(frequency adjustable) | Variable frequency adjustable | Variable frequency adjustable |
| Main motor power | KW | 15 | 22 | 37 | 55 |
(Note: The above is for reference only; production can be customized according to the customer's actual needs.)
Main functions and features
Inverted structure, more suitable for long pipes.
The inverted design allows the tubing to fall naturally under gravity, reducing bending stress, and is particularly suitable for :
- Continuous drawing of long pipes
- Stable traction of large-diameter pipes
- High-precision finished product dimensional control
Automatic coil winding system ensures neat winding.
The equipment is equipped with an automatic coiling function, which can automatically adjust the coiling speed according to parameters such as pipe diameter and speed to ensure that the finished coils are dense, neat, and not easily knotted .
Strong traction force, supporting large-diameter pipes.
A high-power motor and reduction gear system provide strong traction, capable of handling :
- Stainless steel thick-walled pipe
- Large diameter metal tube
- High-strength alloy pipe
Precise speed regulation and stable operation
By using a variable frequency control system, the following can be achieved :
- Smooth start
- Pulling speed is infinitely adjustable
- Maintain constant tension
Ensure that the pipes do not crack, develop cracks, or deform .
Easy mold replacement
The mold base has a compact structure, allows for quick mold changes, improves production efficiency, and is suitable for multi-specification, small-batch production needs .
Robust frame structure, long service life
The entire machine adopts a thickened steel plate welded structure, which has good stability and strong shock resistance, and is suitable for heavy-duty continuous production .
Application industries
- Hardware processing
- Automotive parts
- Home appliance parts
- Medical device tubing
- Refrigeration pipes, heat exchanger tubes
- Mechanical equipment manufacturing
