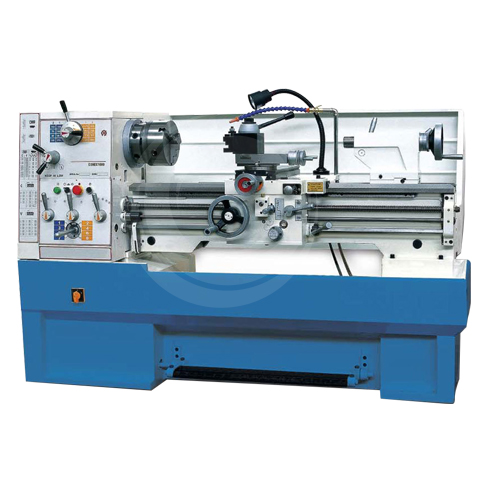

Horizontal lathes are suitable for single-piece and small-batch production workshops in the general machinery manufacturing industry, tool manufacturing departments, machine equipment repair departments and laboratories in various industries. It is capable of roughing and finishing machining of cones and other forms of rotating surfaces; it can turn various commonly used metric, inch, module, diameter pitch threads and multi-start threads; it can perform drilling, dump hole and oil groove broaching and other processing work.
Ordinary lathes are divided into two types: Metric and Imperial.
| Model | WC6280 | WC6266(A) | WCQ6280 | WC6251×1000/1500/2000/3000 | WC6251V×1000/1500/2000/3000 | | WC6256×1000/1500/2000/3000 | WC6256V×1000/1500/2000/3000 | WC6241×1000 | WC6241V×1500 | WC6246×2000 | WC6246V×1000 | WC6246V×1500 | WC6246V×2000 | WCM6241×1000/1500 | WCM6241V×1000/1500 | WC6233×1000/1340 | WC6236×1000/1440 | WC6236V |
| Swing Over Slide | Φ800mm | Φ660mm | 510mm(20") | 560mm(22") | 410mm(16") | 460mm(18") | 410mm(16＂) | 330mm(13″) | 356mm(14″) | 356mm(14″) |
| Swing Over Cross Slide | Φ560mm | Φ440mm | Φ570mm | 305mm(11-7/8") | 355mm(13-3/4") | 220mm(8-13/16") | 270mm(10-3/4") | 255mm(10＂) | 195mm(7-5/8″) | 220mm(8-5/8″) | 220mm(8-5/8″) |
| Swing in Gap Diameter | Φ1040mm | Φ900mm | Φ1035mm | 735mm(29") | 785mm(31") | 640mm(25-1/8") | 690mm(27-1/8") | 580mm(23＂) | 475mm(18-11/16″) | 506mm(20″) | 506mm(20″) |
| Length of Gap | 250mm | 250mm | 200mm(8") | | 165mm(6-1/2") | 190mm(7-1/2＂) | 145mm(5-11/16″) |
| Center Height | 400mm | 330mm | 1135mm | 1160mm | | 205(8″) | |
| Distance Between Centers | 1500mm/2000mm/3000mm | 1500mm/2000mm/3000mm | 1000mm(40") | 1500mm(60") | 2000mm(80") | 3000mm(120") | 1000mm(40") | 1500mm(60") | 2000mm(80") | 3000mm(120") | 1000mm(40") | 1500mm(60") | 2000mm(80") | 1000mm(40") | 1500mm(60") | 2000mm(80") | 1000mm(40＂)/1500mm(60″) | 1000mm(40″) |
| Width of Bed | 510mm | 400mm | 400mm | 350mm(13-3/4") | 300mm(11-13/16") | 250(10＂) | 206mm(8″) |
| Max. Section of Tool | 25mm × 25mm | 25mm × 25mm | 25×25mm(1×1") | 25×25mm(1"×1") | 20×20mm(13/16＂) | 16mm×16mm(5/8″×5/8″) |
| Max. Travel of Cross Slide | 420mm | 368mm | 420mm | 316mm(12-15/16") | 285mm(11-1/4") | 210mm(8-1/4＂) | 180mm(7″) |
| Max. Travel of Compound Rest | 230mm | 230mm | 230mm | 130mm(5-1/8") | 128mm(5") | 140mm(5-1/2＂) | 95mm(3-3/4″) |
| Spindle Bore | Φ105mm | Φ105mm | 80mm(3-1/8") | 58mm(2-1/4") | 52mm(2＂) | 38mm(1-1/2″) |
| Spindle Nose | D1-8 | D1-8 | D1-8 | D1-6 | D1-6 | D1-4 |
| Taper of Spindle Bore | Φ113mm(1:20)/MT5 | Φ113mm(1:20)/MT5 | No.7Morse | No.6 Morse | No.6Morse | MT No.5 |
| Spindle Speed Number | 16 | 16 | 12 | | 12 | | 12 | 16 | 16 |
| Range of Spindle Speed | 17～1100rpm | 25～1600rpm | 25～1600rpm | 25-1600r/min | 25～1600r/min（variable） | 25-1600r/min | 25～1600r/min（variable） | 25～2000r/min | 45-1800r/min | 30-550r/min or 550-3000r/min | 45～1800r/min | 30～550r.p.m | 155～3000r.p.m |
| Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | Φ40mm×2T.P.I. or Φ40mm×12mm | 6mm or 4T.P.I | 6mm or 4T.P.I. | 4T.P.I. | 8T.P.I. or 4mm |
| Inch Threads Range | 7/16～80T.P.I. (54 kinds) | 7/16～80T.P.I. (54 kinds) | 60 kinds 2-112T.P.I | 60 kinds, 2～112T.P.I. | 45kinds 2-72T.P.I | 4～112T.P.I. （Inch lathe）or 4～56T.P.I. （Metric lathe） |
| Metric Threads Range | 0.45～120mm (54 kinds) | 0.45～120mm (54 kinds) | 47 kinds 0.2-14mm | 41 kinds, 0.1～14mm | 39kinds 0.2-14mm | 0.45～7.5mm（Inch lathe） or 0.4～7mm（Metric lathe） |
| Diametrical Pitches Range | 7/8～160DP (42 kinds) | 7/8～160DP (42 kinds) | 50 kinds 4-112D.P. | 50 kinds, 4～112DP | 21kinds 8-44D.P. | |
| Module Pitches Range | 0.25～60MP (46 kinds) | 0.25～60MP (46 kinds) | 39 kinds 0.1-7M.P. | 34 kinds, 0.1～7MP | 18kinds 0.3-3.5M.P. | |
| Longitudinal Feeds Range in Metric Lead Screw | 0.044～1.48mm/rev
0.00165"～0.05497"/rev (25 kinds) | 0.044～1.48mm/rev
0.00165"～0.05497"/rev (25 kinds) | 35 kinds 0.059-1.646mm/rev
(0.0022"-0.0612"/rev) | 42 kinds, 0.031～1.7mm/rev
(0.0011"～0.0633"/rev) | 0.05-1.7mm/rev
(0.002＂-0.067＂/rev) | 0.043～0.653mm/rev （Metric lathe）
0.0012″～0.0294″/rev（Inch lathe） |
| Cross Feeds Range in Metric Lead Screw | 0.022～0.74mm/rev
0.00083"～0.02774"/rev (25 kinds) | 0.022～0.74mm/rev
0.00083"～0.02774"/rev (25 kinds) | 35 kinds 0.020-0.573mm/rev
(0.00048"-0.01354"/rev)
±13mm(±1/2") | 42 kinds, 0.014～0.784mm/rev
(0.00033"～0.01837"/rev) | 0.025-0.85mm(0.001＂-0.0335＂/rev)
±13mm(±1/2＂) | 0.027～0.413mm/rev（Metric lathe）
0.0004″～0.01″/rev（Inch lathe） |
| Quill travel | 235mm | 235mm | 180mm(7") | 130mm(5") | 120mm(4-3/4＂) | 120mm(4-3/4″) |
| Quill diameter | Φ90mm | Φ90mm | 75mm(3") | 60mm(2-5/16") | 50mm(2＂) | 45mm(1-3/4″) |
| Quill taper | MT5 | MT5 | No.5Morse | No.4 Morse | No.4 Morse | MT No.3 |
| Main motor power | 11kW (15HP) | 7.5kW(10HP) | 7.5kW(10HP)3PH | 5.5kW(7.5HP) 3PH | 2.2/3.3kW(3/4.5HP)3PH | 1.5/2.4kW(2/3HP) |
| Coolant pump power | 0.09kW (1/8HP) | 0.09kW (1/8HP) | 0.1kW(1/8HP),3PH | 0.1kW(1/8HP) 3PH | 0.1KW(1/8HP),3PH | 0.04kW |
| Overall Dimension (L×W×H) | 321/371/471cm×136cm×167cm | 321/371/471cm×123cm×160cm | 321/371/471cm×123cm×167cm | 239×115×143 | 284×115×143 | 334×115×143 | 434×115×143 | 239×115×146 | 284×115×146 | 334×115×146 | 434×115×146 | 220×108×134cm | 275×108×134cm | 325×108×134cm | 220×108×137cm | 275×108×137cm | 325×108×137cm | 194×85×132cm/244×85×132cm | 182×74×124cm | 182×74×125cm | 182×74×125cm |
| Packing Size (L×W×H) | 324/374/474cm×127cm×191cm | 324/374/474cm×114cm×184cm | 324/374/474cm×114cm×191cm | 245×115×174 | 290×115×174 | 340×115×174 | 440×115×174 | 245×115×174 | 290×115×174 | 340×115×174 | 440×115×174 | 225×112×162cm | 280×112×156cm | 330×113×156cm | 225×112×162cm | 280×112×156cm | 330×113×156cm | 206×90×164cm/256×90×164cm | 193×76×158cm | 193×76×158cm | 193×92×159cm |
| Net Weight(kgs) | 3320/3605/3970 | 3060/3345/3710 | 3220/3505/3870 | 2035 | 2160 | 2435 | 2805 | 2160 | 2285 | 2560 | 2930 | 1580 | 1745 | 1900 | 1645 | 1810 | 1965 | 1160 | 1340 | 700 | 730 | 750 |
| Gross Weight(kgs) | 3825/4125/4600 | 3535/3835/4310 | 3705/4005/4480 | 2415 | 2550 | 2840 | 3270 | 2555 | 2690 | 2980 | 3410 | 1845 | 2050 | 2230 | 1910 | 2115 | 2295 | 1350 | 1565 | 820 | 860 | 880 |
