High-frequency Vibratory Feeder for Standard Electronic Components
High-frequency vibratory feeders for electronic components are mainly used in automated production lines to accurately and orderly transport tiny electronic components (such as capacitors, resistors, diodes, IC chips, connectors, etc.) to assembly or processing stations. Compared with ordinary vibration feeders, high-frequency vibration feeders have a higher vibration frequency and are suitable for lightweight and fragile electronic components, ensuring smooth transportation and reducing friction damage.
Application scenarios
SMT patch process: provide neatly arranged capacitors, resistors, diodes and other small components for the patch machine.
IC packaging test: transport IC chips to the test station to improve test efficiency.
Electronic assembly production line: such as connectors, switches, relays and other automated assembly processes.
Main feature
Driving part: Japan SINFONIA high-frequency high-speed circular vibration and direct vibration.
Control part: Japan SINFONIA intelligent control system.
Feeding part: high-hardness aluminum alloy and special surface treatment.
Photoelectric part: high-speed sensor and image recognition system.

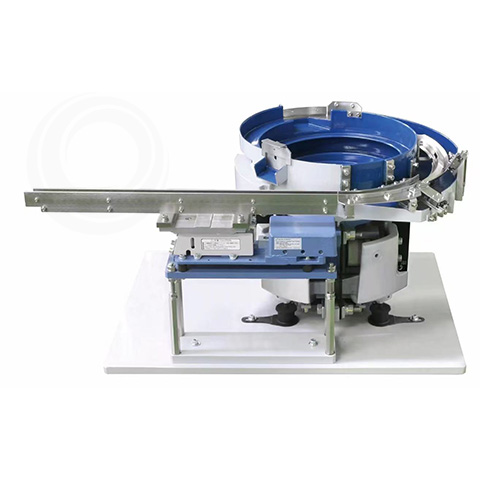

Intelligent Chip Resistor and Capacitor High-speed Precision Feeder
This product is mainly suitable for feeding standard chip resistors, chip capacitors and other chip electronic components.
Specifications of Some Chip Capacitor Intelligent Feeders
NO.
Model
Workpiece specifications (Metric System)
Workpiece size (mm)
Feeding capacity (pcs/min)
L
W
T
1
THE-C0201
C0201
0.20
0.10
0.10
3,500
2
THE -C0402
C0402
0.40
0.20
0.20
12,000
3
THE -C0603
C0603
0.60
0.30
0.30
12,000
4
THE -C1005
C1005
1.00
0.50
0.50
7,000
5
THE -C1608
C1608
1.60
0.80
0.80
5,800~6,200
6
HE-C20125
C20125
2.00
1.25
1.25
5,500
Specifications of Some Chip Resistor Intelligent Feeders
