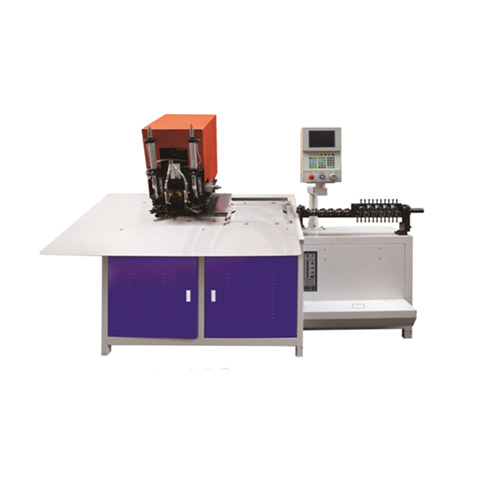

The frame bending and Welding Machine is widely used to bend metal wires (round wires, square wires, Flat Wires) into various specifications of squares, rectangles, U-shaped, ladder-shaped, etc., and weld the interfaces. It is widely used in: logistics trolleys, storage cages, work tables, tool cabinets, shelves, supermarket shelves, pet cages, barbecue nets, shelf frames, supermarket trolleys, metal mesh and other industries.
Technical parameters of CNC frame bending and welding machine
Parameters of new 2-6 bending frame welding machine
Electrical voltage
Three-phase four-wire 380V+ground wire
Number of straightening wheels
22 groups（ Made of high quality 45# ）
Bending molds
All are made of high-quality material SKD11/51, with a hardness of 62°
Number of wire feeding wheels
3 groups（ The wire feeding wheels adopt national standard Cr12, fine polishing and heat treatment; the hardness reaches 58°, wear resistance ）
English/Chinese (system with upload and download functions)
Maximum bending
About 90 Nm
Control screen
Button + touch screen PLC dual system
Control chip
32-bit high-performance processor
Mechanical properties
The mechanical action of the machine is controlled by the bending action and bending speed programmed by the microcomputer, and various instructions are issued to form products of various models and specifications.
Motion control, automatic feeding, automatic material return, straightening, cutting, bending and forming
Up to 300 actions are set to form various shapes
Welding modules
2 sets of manipulator clamps
40KW welding transformer
Technical parameters of hydraulic frame bending machine
Motor power: 2.2kw
Wire diameter: 2-8mm
Processing size: 200×600mm
Working pressure: 0.7T
Scope of application: rectangular and square forming of iron wires
Maximum frame size: double bends: 600*600 single bend: 1200*1200
Minimum frame size: double bend: 105*105 single bend: 50*50 (bending frame/frame size refers to the size of the inner frame.)
Maximum number of frames: 2.0 wire can be bent into about 20 wires at the same time, 5.0 wire can bent into 4 wires at the same time, and 7.0 and above wires can be bent into one.
Dimensions: Length 1300* Height 800* Width 700
Weight: About 500KG
Performance and features of hydraulic frame bending machine
This machine is hydraulically driven, with imported hydraulic components, Taiwan famous brand motors, oil pumps, solenoid valves, etc. It is easy to adjust, accurate in size, high in efficiency, and does not require mold making, saving time, effort, and materials, and automatically discharging materials.
The bending mechanism, electronic control system, and hydraulic system are reasonably designed, compact in structure, and flexible in action.
Manually place the material, take the frame, and automatically bend the frame at one time.
It has strong power. It uses multiple cylinders for step-by-step action, and is easy to adjust. It can be bent into U-shape and trapezoidal shapes. 3 to 4 φ5mm round wires can be bent into a frame at one time, with high production efficiency and accurate size.
It uses excellent materials, reasonable processing and heat treatment processes, high comprehensive mechanical properties of parts, good wear resistance, and long service life.
