Flat | oval Tube Filling Machine | Magnesium Oxide Powder | TF04

Main Structure and Performance

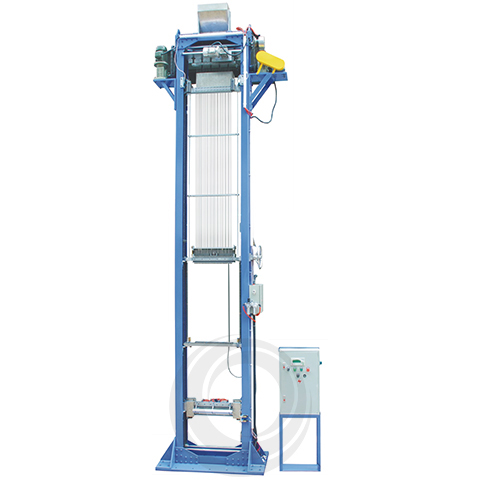

The flat tube Filling Machine features a new type of magnesium oxide Powder Filling Machine with a special structure. Because the internal structure of the product being filled differs from that of standard heating elements, we specifically designed this model.

The machine's structure can accommodate the workpiece: one, two, or three resistance coil assemblies, which can be arranged in a straight line. Customization is possible based on product and process requirements. A special vibrator structure can be used for vibration, allowing the components produced to better meet the process requirements.

Main Technical Parameters

1. Number of stations: Determined by product size and customer requirements
2. Filling length (mm): 300-10,000 mm
3. Filling tube diameter (mm): Specified by the customer
4. One machine can accommodate a single specification.
5. Filling Structure: Triple-center guaranty or dual-center guaranty (depending on product structure)
6. Heating Coil Assembly: 1-wire, 2-wire, 3-wire
7. Control Method: Servo Motor/Universal Motor
8. Vibration Method: Mechanical, Electromagnetic
9. Output: Depends on tube length and tube structure
10. Voltage: Three-phase/480V/Three-phase/380V/Three-phase 220V/Single-phase 220V
11. Power: 1.5kW
12. Machine Dimensions (mm): Depends on the product
13. Weight: (1-meter machine) Approximately 700kg
