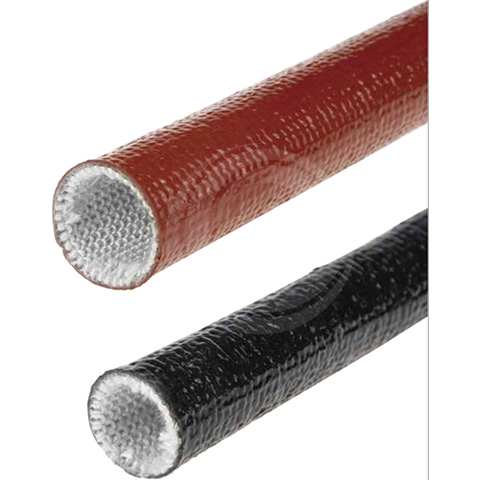

Fireproof Silicone Sleeving -high Temperature Resistant and Flame Retardant
High temperature fire resistant Sleeving are designed to protect hoses, wires and cables from the hazards of high heat and occasional flames. The Fireproof Sleeving is made of alkali-free glass fiber or high-bulky glass fiber woven into a tube, coated with organic high-temperature resistant iron oxide red silica gel and treated at high temperature. After vulcanization, it can be used for a long time in the temperature range of -60°C - 260°C and maintain its soft and elastic properties. The synthesis of special high temperature resistant materials determines that the fireproof Sleeving has many characteristics that are difficult to replace by other similar materials: High temperature resistance, thermal insulation, flame retardancy, electrical insulation, chemical stability, weathering resistance, cold resistance, water resistance, oil resistance, ozone resistance, voltage resistance, arc resistance, corona resistance, etc., especially safety and environmental protection performance, it is the best alternative to asbestos and other hazardous products. It not only effectively isolates energy loss in tubes and hoses, protecting employees from burns, but also "bundles" wires, hoses and cables together. The thick Silicone Rubber coating can resist molten spatter, slag, welding slag, welding spatter, electric sparks or grinding sparks and other contaminants. It can also effectively protect pipes, cables, etc. from damage by ozone, ultraviolet rays and abrasion.
High temperature fireproof Sleeving is divided into standard grade and priority grade. The priority grade embryo tube is knitted with expanded alkali-free glass fiber and then coated with a higher quality silicone rubber coating. The use of upgraded Raw Materials and expanded knitting weaving method makes it have better thermal insulation protection performance than the standard grade high temperature fireproof Sleeving.
Size
| Product code | Inner diameter | Wall thickness (mm) | Standard packaging (m/roll) |
| mm | inch |
| S7837 | 6 | 1/4 | 1.5 | 20 |
| S7996 | 8 | 5/16 | 1.6 | 20 |
| S7997 | 10 | 3/8 | 1.8 | 20 |
| S7998 | 15 | 5/8 | 2.1 | 20 |
| S7603 | 20 | 3/4 | 2.4 | 20 |
| S7604 | 25 | 1 | 2.6 | 20 |
| S7835 | 30 | 1-1/8 | 2.9 | 20 |
| S7999 | 35 | 1-3/8 | 3.1 | 20 |
| S7836 | 40 | 1-5/8 | 3.4 | 20 |
| S7661 | 45 | 1-3/4 | 3.4 | 20 |
| S7814 | 50 | 2 | 3.6 | 20 |
| S8000 | 55 | 2-1/4 | 3.7 | 20 |
| S7608 | 60 | 2-3/8 | 3.8 | 20 |
| S8001 | 65 | 2-1/2 | 3.8 | 20 |
| S7662 | 70 | 2-3/4 | 4 | 20 |
| S8002 | 75 | 3 | 4.1 | 20 |
| S8003 | 80 | 3-1/8 | 4.3 | 20 |
| S7839 | 90 | 3-1/2 | 4.5 | 20 |
| S7815 | 100 | 4 | 4.6 | 20 |
* Other specifications can be produced on request.
Color
Brown, other colors can be customized.
Application
It is mainly used in steel mills, smelters, glass factories, rail transit, large transformer sites, high temperature areas of electric power, chemical industry and other industries; and hydraulic hoses in various harsh environments, cables in heating areas of metallurgical enterprises, Roller tables in rolling areas, Rolling Mill cables, metal hoses, bellows, fluid pipelines, feed quick-change joints, oil pipes and various pipeline line protection.
Product Parameters
| Product name | Fire retardant casing |
| Specification | 4mm----200mm (conventional packaging length: 15-25m/roll) |
| Material | Inner layer: woven with high-purity alkali-free glass fiber Outer layer: coated with organic silicone |
| Product features | Silicone rubber has excellent heat resistance, cold resistance, dielectric properties, ozone resistance and atmospheric aging resistance. |
| working temperature | It can be used continuously at 260°C (500°F) and can withstand short-term temperature rises up to 1650°C (3000°F) Continuous operating temperature: -60°C to +260°C Peak value over time -800°C Withstand 30 minutes -1100°C Withstand 15 minutes -1500°C Withstand 1 minutes -1650°C Withstand 1 seconds |
| Product parameters | Weaving density ≤30 Fiber diameter 9-11 microns Thermal expansion coefficient 5.5*10-6/℃ Flame retardant grade UL-94-V-0 Tear strength 7.0MPA Withstand voltage 7KV----25KV |
Product details

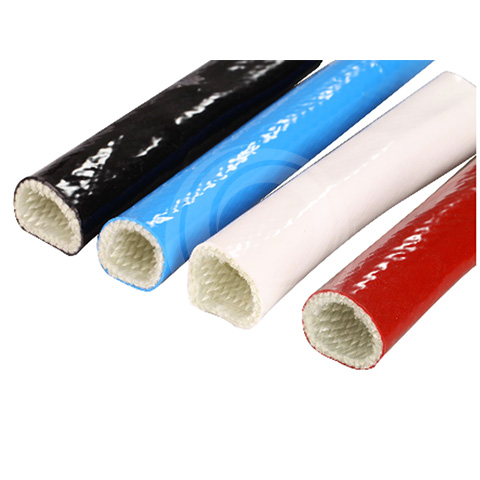

Rich in color
The regular color is red, and the colors that can be customized include silver gray, yellow, blue, black, etc.
Secure installation/not easy to disassemble
It is generally suitable for protecting shorter or straighter pipelines, cable protection, automotive wiring harnesses, and generator sets that require oil resistance, water resistance, and corrosion resistance. After installation, it is firm, not easy to disassemble, has good sealing, and has good insulation, heat insulation, and moisture-proof effects.
Safe and environmentally friendly excellent materials
Our factory has strict production standards for all materials, including multiple quality indicators and absolutely zero pollution and zero asbestos.
