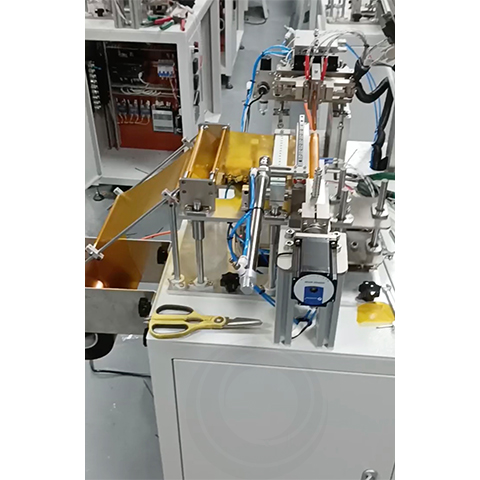

Automatic film winding machine | Polyimide film | PTC heating element

Our automatic film winding Machines are specially designed for PTC heating elements, PTC heating plates and other products. It can achieve automatic alignment winding of polyimide film ( PI film), constant tension control, and automatic film cutting and positioning，automatic heating and sealing film .

Main parameters

1. Power supply: AC 220V/50Hz/5A;
2. Gas source: 0.4~0.6MPa, flow rate more than 20L/min;
3. Power: 0.6KW;
4. Dimensions: Height 1220mm × Width 800mm × Length 1000mm;
5. Weight: 110kg
6. Applicable product specifications: length 20 - 149mm; width 4 - 60mm;
7. Production efficiency: 600-900pcs per hour.
8. Each process parameter can be set on the human-machine interface.
