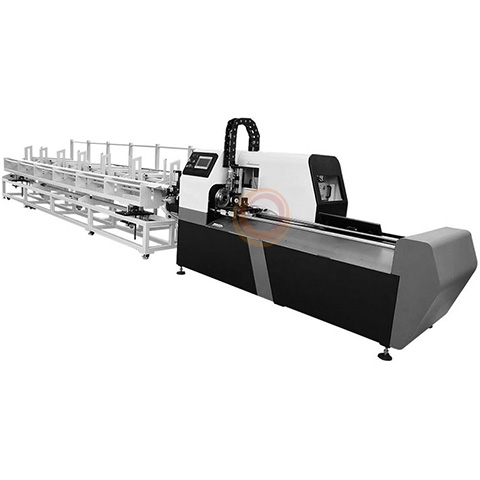

Automatic Fiber Laser Tube Cutting Machine

Suitable for all kinds of metal round tube, square tube ultra-precision Laser Cutting, especially suitable for stainless steel, iron plate, copper plate, aluminum plate and other metal materials, for a variety of high hard and brittle alloy has excellent processing effect.
Widely used in: household appliances, kitchen, digital products, precision devices, watches and glasses, mobile phone communication and other diversified industries.
Laser cutting speed is fast, the incision has no mechanical stress, smooth and flat without shear burrs. The slit is narrow, the pipe deformation is smaller, and the heat affected zone is small.
Slit: 0.05~0.15mm
High processing precision, good repeatability, no damage to the surface of the material.

Technical Parameter

Model:	JGQ02
Laser type:	Medium power high efficiency fiber laser
Laser power：	1000/1500/2000 W
Laser wavelength：	1064nm
Cutting side：	L1500*D30mm
Cut seam width：	Max. 0.15mm (depending on power and material)
Cutting thickness：	Max. 3mm
Air speed:	Max. 250mm/s
Machine tool accuracy：	≤ ± 0.05mm
Rated power：	Host machine ≤5KW
Power requirements：	Host machine 220V / 50Hz
Gas supply condition：	＜2.5Mpa
Use environment：	Room temperature below 35 degrees, dry environment no water oil dust, ventilation
Principle of use：	Regular cleaning, regular lubrication, no illegal operation
Control software：	PLC Controller
Compatible file：	CAD or CorelDRAW output DXF format files
Equipment size：	9135mm1600mm1530mm
Machine weight：	About 1200KG
Dust blower：	Customer-owned
