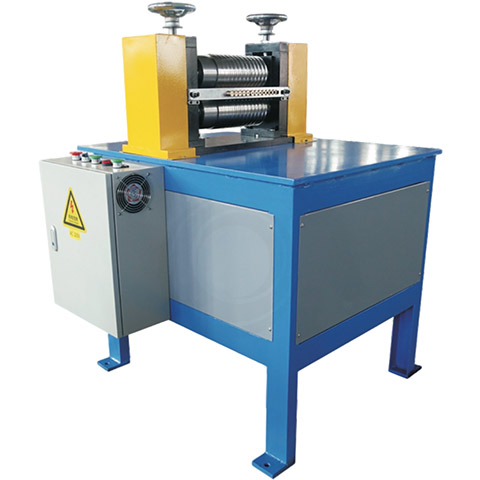

Rolling Machine SG03 | Economic type

Main structure and performance

The economic rolling machine uses a pair of rollers installed on the machine to make holes as needed and squeeze the tubes from large to small. The machine is suitable for the reducing and shaping process of industrial heating element and hot runner heating elements. It can produce round tubes, square tubes, flat tubes and oval tubes. One machine can load multiple specifications at the same time, which is suitable for small batches of multi-specification products and customer selection.

Main technical parameters

1. Applicable reduce tube diameter (mm): 2-15
2. Reducing tube length (mm): 150-6000
3. Power：3KW
4. Machine volume（mm）：1200*1000*1200
5. Machine weight：500KG
