Automatic Wire Tube Decoiling Straightening Cutting Machine Xz04sx
Automatic Wire Tube Decoiling Straightening Cutting Machine Xz04sx
  • Automatic Wire Tube Decoiling Straightening Cutting XZ04SX

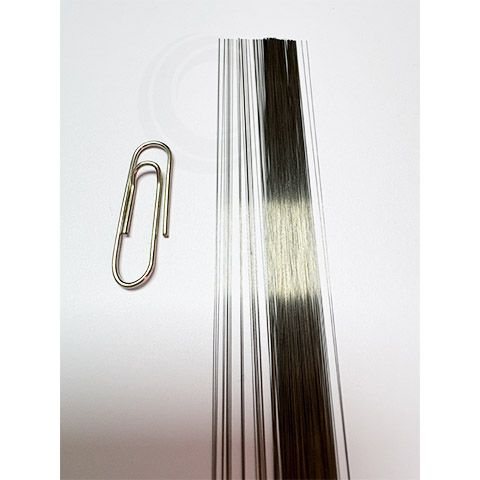

  • High Precision Metal Wire Samples
  • High Precision Metal Wire Samples
  • Precision Fine Wire Automatic Straightening and Cutting Machine- XZ04SX

    Specially used for straightening fine wires where high precision is required.

    Applicable industries

    High-precision medical, cosmetic, precision electronics, electric axis and other metal coil wire and capillary tube type straightening and cutting processing.

    Features

    1. PLC program controled, servo flying shearing, easy to operate;
    2. Adopts dual-axis forward and reverse straightening, fast straightening, stable and efficient;
    3. Reasonable mechanism is equipped with targeted straightening moulds, which is suitable for straightening metal fine wires with high surface requirements.
    4. It has automatic shutdown functions such as broken wires, lack of wires, twisted wires, etc., output setting and safety detection functions.

    Main Models

    ModelXZ04SX -0.8XZ04SX -1.2XZ04SX -1.5XZ04SX -2.0
    Wire diameter range0.1-0.8mm0.4-1.2mm0.5-1.5mm0.8-2.0mm
    Applicable wire materialsGold, silver, Copper, iron, aluminum, titanium, molybdenum, stainless steel spring steel and other metal wire and capillary (hollow tube)
    Length of cut sectionAdjustable, minimum 3mm
    Minimum Deviation±0.2mm
    Cutting speed6-30M/min
    Straightness0.05mm/m
    Power supply380V/50HZ
    Mainframe power2.0KW2.0KW2.0KW2.0KW
    Machine Dimension (L*W*Hmm)1600* 630* 9501600* 630* 9501600* 630* 9501600* 630* 950
    Weight(KGS )360360360360

    Videos:

    Video: Automatic Wire Tube Decoiling Straightening Cutting XZ04SX

    Video: automatic wire tube Decoiling straightening cutting machine XZ04SX 2
