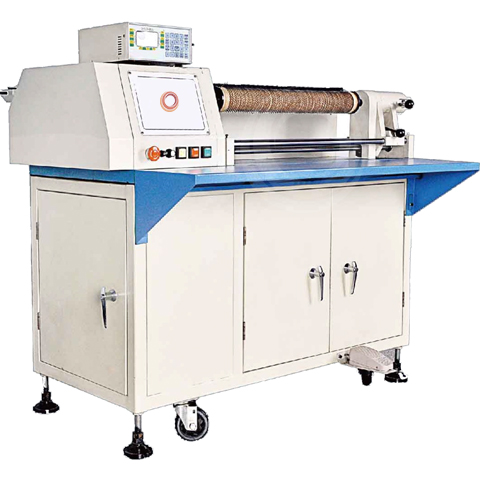

Waved Wire Winding Machine for resistor of High Power

Application of the machine

It is suitable for corrugated wire winding resistors, ceramic wire winding resistors, braking resistors, elevator resistors, distribution box resistors, and large resistors.

Technical specifications:

Product Features:

1. This machine is a product developed for corrugated resistors and has the function of pressing corrugated wires and ordinary wires.
2. The imported guide rail is combined with a ball screw, and the tailstock has a strong tail top synchronized with the spindle, which makes the performance more stable and reliable.
3. The machine uses frequency converter technology to control the corrugator motor and main motor to ensure the winding accuracy.
4. Embossing and winding are carried out at the same time and formed at the same time.
5. This machine uses a powerful 32-bit control chip, which is fast and reliable. The Chinese-language display, interface operation, and winding data are saved when the power is turned off and the product is not discarded.
6. The whole machine uses original bearings imported from Japan (NSK, NTN), Japanese Bando belts (American Gates belts), Taiwan ball screws (TBI), inverters from Taiwan (Taian) and other imported accessories.
7. It has a four-axis synchronous design, full cast iron body, high speed, and low noise. It is an ideal product for winding corrugated resistors.
