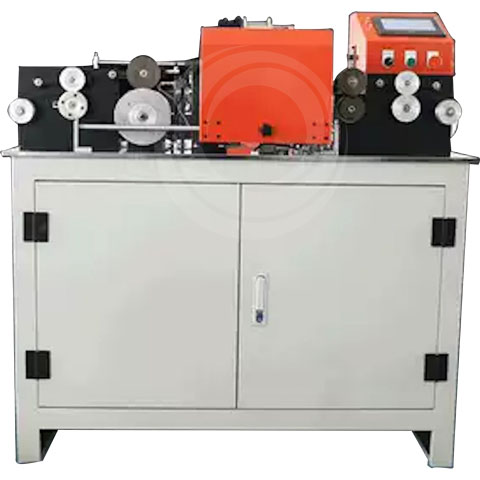

Automatic Coiling Machine for Heat Trace Cable RX08

Technical Parameter

• Suitable range (Before Winding): max. width 12mm, max. thickness 6mm, min. width 3.0mm, min. thickness 1.5mm.
• Winding speed: machine spindle speed maximum 4000 RPM. (Example: Maximum speed of 4 m/min for 1mm pitch, maximum speed of 8 m/min for 2mm pitch).
• Wire density: 0.1-10mm adjustable.
• Servo motor traction, servo motor drive.
• Main motor: servo drive.
• Rear traction: servo drive.
• PLC programmable controller control
• The maximum winding spindle speed is 4000rpm. Main bearing is original imported brand.
• English interface Color touch screen display, simple operation and friendly interface.
• With broken wire automatic stop function.
• Tape rewound part (that is, when the wire on the reel is used up, it is not necessary to pour out the unwound companion, but to pour the wire onto the already used reel).
