CNC fully automatic wire feeding , cutting and stripping machine
This machine adopts the latest 32-bit intelligent control system, Chinese and English switching LCD display, touch screen operation, can store hundreds of information, call at any time, efficient, convenient and fast. Suitable for electronic wire, PVC, braided wire, silicone wire, high temperature wire, Teflon wire, isolation wire, processing cutting, peeling and arbitrary adjustment.
Features of wire cutting and stripping machine
Adopt the latest 32-bit intelligent control system ;
The four wheels are driven by stepper motors and the pulse quantity is fed into the wire;
Fast working speed, high efficiency, high precision, time saving and cost saving;
High-speed steel blade is sharp and durable;
Large-capacity memory can save 100 sets of parameters at the same time for easy recall;
Wire cutting and stripping machine technical parameters
product name
Computer wire cutting and stripping machine
model
QX01
Dimensions
Length 420mm × height 297mm × width 345mm
weight
28kg
Display method
4.3-inch touch screen
power supply
AC175V-250≤50/60HZ
power
120W----220W
Cutting length
0.1mm---99999.9mm
Stripping length
Stripping head 0.1-50mm , stripping tail 0.1-30mm
Cutting wire core
0.1-6.0(mm²)
Cutting tolerance
Within 0.002×Lmm (L= cutting length )
Middle stripping
13 locations
Catheter diameter
1.5mm-----9mm
Tool material
Tungsten steel / imported high speed steel
Drive mode
Four wheels
Wire stripping per hour
3000-5000
Wire pressure regulation
support
Pulse equivalent
1 meter line error 0.05mm
Total
999999
batch
99999
Blade motor accuracy per step
0.03mm
Inlet and outlet motor accuracy
Silent hybrid stepper motor with 0.1mm per step
Notes function
Automatic line-lack shutdown, automatic line-out, automatic line-in and timed start can be added.

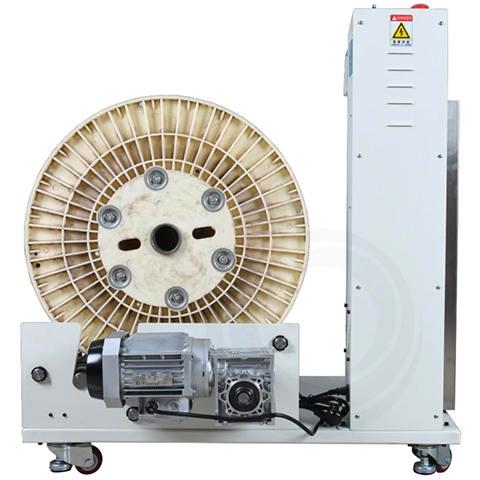

Fully automatic wire feeding machine
This machine is a fully automatic wire feeding machine, which can be used with a fully automatic computer wire stripping machine to avoid the trouble of manual wire laying. Just put the whole roll of wire on the wire rack, start the motor when the wire needs to be fed, and the machine will automatically stop when the wire is loose to a certain extent. This machine is compact in design. Just put the whole reel of wire on the wire rack. The high-power motor can bear 80Kg. It can actively feed the wire, cooperate with the wire feeding, automatically sense the brake, and the high-quality guide rail has no resistance. The noise is small, and the wire wheel can be adjusted according to the wire diameter. This machine is an independent machine, and does not need to be synchronously controlled with the host. It is simple to operate and convenient to use.
Features
Stepless speed regulation, smooth operation;
With built-in braking function, stable stopping;
High quality motor, fast response and high speed;
Multi-stage tension pulleys，slow down the rising speed of the wire pulley;
Independent system, can complete timely release and shutdown functions without host control;
Main technical parameters of fully automatic wire feeding machine
name
Fully automatic wire feeding machine
Function
Automatic wire laying in conjunction with various wire harness automatic processing equipment
