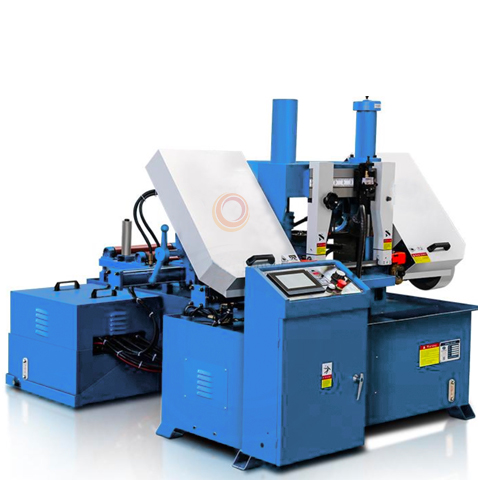

CNC Metal Band Saw Machine

CNC metal band sawing machine is mainly used for sawing carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless steel, acid-resistant steel and other metal materials.

Main Model

Optional Configuration

1. Saw blade cover protection
2. Protective cover power failure protection
3. Fast down protection
4. Saw blade hydraulic clamping
5. Saw blade variable speed
6. Hydraulic chip conveyor
7. Saw blade broken protection

Main Feature

1. Through mechanical, electrical and hydraulic cooperation, the machine tool has the function of automatic clamping, automatic feed, automatic rapid rise of the saw frame after cutting (that is, knife withdrawal).
2. The feed speed, within a given range, can be adjusted stepless.
3. Because of its cutting tool, the use of imported thin sheet bimetallic band saw blade, therefore, narrow incision, less consumables, the required power is small, is a large, medium-sized enterprises, institutions to cut large steel embryo, large die steel embryo with a significant material saving and energy-saving efficient cutting tool.
4. The reinforced adjustable tungsten steel gripper ensures the sawing accuracy.
5. Saw frame up and down positioning, controlled by ultraviolet proximity switch, feeding control when returning to the origin, controlled by ultraviolet proximity switch (normally open)
6. The feeding length size is determined by the grating ruler, and the effective detection range of the grating ruler is 500mm.
7. Kunlun DOP human-machine interface supports dual communication interface connection function, can simultaneously connect two different communication formats of the controller, architecture multi-machine online network.
8. Delta DVP programmable controller, automatic control.
9. Feed length detection Shenzhen Emmott Grating Ruler
10. Material clamping adopts cylinder clamping.
11. Multiple materials can be cut simultaneously.
12. Line speed According to different materials sawing, given different line speed, to achieve different sawing efficiency.

Automatic Control System

1. Automatic control man-machine interface through mechanical, electrical, hydraulic cooperation, with automatic feeding, automatic cutting and other systems to control the work cycle.
2. In the operating system is divided into manual and automatic work, by the man-machine interface conversion control.
3. The band saw machine is equipped with two groups of vise, one group is used to clamp the sawing material, and the automatic feeding is controlled by the other group of vise clamping through the cylinder work. The feeding length is controlled by the UV clamping stroke switch, the feeding is controlled by the grating ruler automatic detection data, the cutting work is converted by the PC controller, and the feeding is automatically returned to the origin.
4. CNC band sawing machine is suitable for sawing large quantities of materials with the same specifications, stable performance and high efficiency. It can replace 3 times the working efficiency of ordinary sawing machine.
5. Man-machine interface replaces the traditional control panel functions, digital Settings, indicators, etc., display equipment status at any time, operation instructions, parameter setting. (Input sawing length and sawing quantity on the human-machine interface computer, easily press the start button LCD display LCD screen, sawing input sawing quantity is completed, the sawing machine automatically stops and other functions.
6. PLC programmable controller, set the automatic program of the whole sawing process.
7. The feeding length is controlled by grating ruler, with high positioning accuracy and length error < 0.30mm.
8. It can be controlled by CNC one way automatic feeding length 500mm.
