CNC Automatic Circular Saw Machine| Corner Tube Cutting Machine | QG07

Feture

Automatic Corner Cutting Machine is a kind of automatic feed metal cutting machine It is not limited to tube types. It is suitable for steel tubes, Stainless Steel Tubes, Copper Tubes, aluminum tubes and other metal materials. The production process is stable, the product precision is high, and it can be realized multi-tube cutting and single-tube cutting, are the most ideal equipment for cutting hardware decoration, curtain decoration, outdoor furniture, fitness equipment, auto parts, plumbing industry, supermarket shelves, oil tubelines, etc.

1. This machine can feed 1500mm at one time (the feeding length can be customized according to the customer's actual requirements);
2. It can cut single or multiple tube Fittings (depending on the size of the tube fitting); it can feed repeatedly multiple times; if 3 meters of material need to be fed at a time, the equipment will automatically feed 2 times, with a feeding accuracy of ±0.3mm (can be compensated).
3. This equipment can cut steel tubes of different diameters by changing the jaws.
4. Feeding Mechanism: It adopts the form of servo motor + ball screw, and the feeding guide rail adopts self-lubricating linear guide rail;
5. Tube Cutting: adopts vertical slide form, and the track adopts self-lubricating linear guide rail;
6. Structure and Action Description: The tube fittings are placed on the machine table, automatically clamped, automatically fed, automatically cut, and cycled.

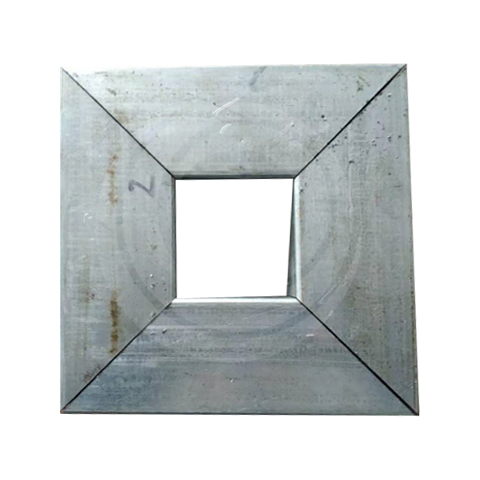

7. The machine head part can servo the rotation angle ±45° (cutting angle -45° to +45°), and the rotation angle accuracy is ±0.3 (can be compensated)
8. The chip liquid is equipped with a filtration system for centralized processing, making it convenient and clean.

Advantage

It has good cutting rigidity, fast cutting speed and high degree of automation. The equipment is easy to maintain and increases the service life of the equipment. The unique clamping system ensures that the product is not scratched or deformed, and the delivery process is smooth.

Regular Size

Process Description

Check the equipment → Start the equipment → Feeding starts clamping → Servo motor starts feeding → Angle motor starts turning to the Angle you set → Start cutting → Finish cutting → Main clamp opens. Pull clip opens → Then discharge.
