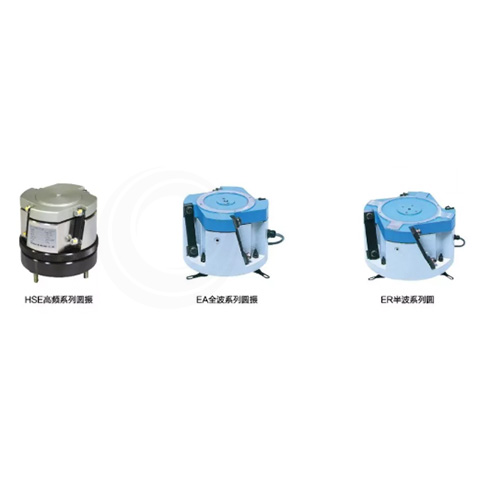

EA/ER/ME/HME/HSE Series Circular Vibration
Full-wave EA series circular vibration: with a frequency of 100-180Hz and a small amplitude of 0.6mm, it is mainly used for feeding precision and small workpieces.
Half-wave ER series circular vibration: with a frequency of 50-900Hz and a large amplitude of 1.2mm, it is mainly used for feeding small to large workpieces.
High-frequency ME/HME/HSE series circular vibration: mainly used for high-speed and high-precision feeding of fragile tiny workpieces and chip workpieces.
ME/HME/HSE High-frequency Series Circular Vibration Basic Specifications
Model
Diameter (mm)
Height (mm)
Max. Upper Plate Diameter (mm)
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Load Net Weight (kg)
Applicable Controller
ME-08C
Φ85
80.5
Φ140
100/110
0.30
100-180
2.5
0.6
C10-1VF C10-1VFEF C9-03VFTC
ME-14C
Φ140
89
Φ230
0.55
7.8
2.0
HME-08C
Φ85
80.5
Φ140
0.15
220-360
2.5
0.6
HME-14C
Φ140
89
Φ230
0.30
7.8
2.0
HSE-14
Φ140
93
Φ230
0.30
9.3
2.0
EA Full-wave Series Circular Vibration Basic Specifications
Model
Diameter (mm)
Height
Max. Upper Plate Diameter (mm)
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Load Net Weight (kg)
Applicable Controller
EA-15B
Φ165
133
Φ250
200
0.35
100~180
8
2.3
C10-1VF C10-1VFEF C9-03VFTC C10-3VFEF
EA-20B
Φ210
155
Φ320
0.80
16
4.0
EA-25
Φ260
190
Φ420
1.50
30
8.0
EA-30
Φ310
220
Φ500
2.00
48
12.5
EA-38
Φ390
260
Φ600
2.50
81
17.0
EA-45
Φ460
280
Φ700
3.00
115
26.0
ER Half-wave Series Circular Vibration Basic Specifications
Model
Diameter (mm)
Height (mm)
Max. Upper Plate Diameter (mm)
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Load Net Weight (kg)
Applicable Controller
ER-25B
Φ260
198
Φ420
200
1.00
50-90
30
8.0
C10-1VF/1VFEF
ER-30B
Φ310
225
Φ500
1.50
48
12.5
C10-3VF C10-3VFEF
ER-38B
Φ390
264
Φ600
2.00
81
17.0
ER-45B
Φ460
286
Φ700
2.50
115
26.0
ER-55B
Φ560
321
Φ830
5.00
160
70.0
C10-5VF C10-5VFEF
ER-65B
Φ660
321
Φ980
5.00
200
85.0
ER-75B
Φ760
321
Φ1130
5.00
260
125.0

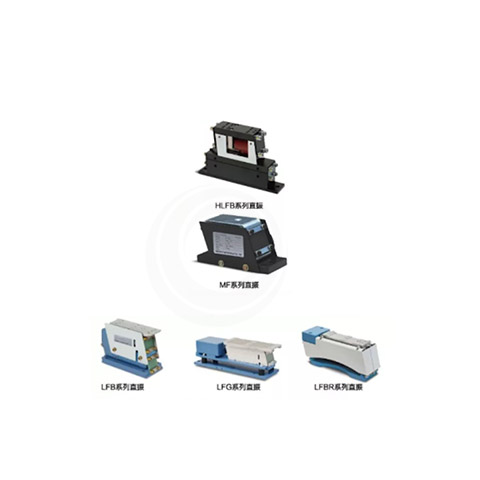

LFB/LFG/LFBR/MF/HLFB Series Direct Vibration
LFB series direct vibration: leaf spring anti-vibration type, compact structure, small interference with feeder.
LFG series direct vibration: rubber pad anti-vibration type, simple installation, convenient balance adjustment, and little interference with the feeder.
LFBR series direct vibration: leaf spring anti-vibration type, low reaction force type, low reaction force to machine and equipment vibration
MF series direct vibration: direct placement type, suitable for long-distance, high-width feeding.
HLFB series direct vibration: high frequency direct vibration, suitable for high speed and stable feeding of tiny and fragile workpieces.
LFB Series Direct Vibration Basic Specifications
Model
L*W*H
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Max. Track Length*Width (mm)
Min. Track Thickness (mm)
Track Weight Range (kg)
Applicable Controller
LFB-300
150*65*97
200
0.04
90-120
3
300*50
6
0.4-1.0
C10-1VF C10-1VFEF
LFB-400
180*75*120
0.08
80-110
5
400*50
10
0.8-2.0
LFB-550
255*90*143
0.15
75-100
10
550*65
14
1.4-3.5
LFG Series Direct Vibration Basic Specifications
Model
L*W*H
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Max. Track Length*Width (mm)
Min. Track Thickness (mm)
Track Weight Range (kg)
Applicable Controller
LFG-600
296*75*102
200
0.20
80-110
7.4
600*50
10
1.4-3.6
C10-1VF
LFG-750
346*100*132
0.37
13.2
750*65
14
2.2-5.4
C10-1VFEF
LFG-900
418*125*144
0.41
19.6
900*75
18
4.0-9.8
LFBR Series Low Reaction Force Direct Vibration Basic Specifications
Model
L*W*H
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Max. Track Length*Width (mm) (mm)
Min. Track Thickness (mm)
Track Weight Range (kg)
Applicable Controller
LFBR-350B
196*70*93.5
200
0.12
90-120
12
350*40
9
0.4-1.2
C10-1VF C10-1VFEF
LFBR-450B
238*80*107.5
0.14
75-110
15
450*45
12
1.2-2.3
LFBR-600B
313*95*133
0.28
75-90
15
600*55
14
2.3-4.0
MF Series Direct Vibration Basic Specifications
Model
L*W*H
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Max. Track Length(mm)
Max. Track Width (mm)
Max. net weight of track (kg)
Applicable Controller
MF-04C
106*46*56
200
0.065
50-90
0.6
300
35
0.4
C10-1VF C10-1VFEF
MF-15C
160*56*78
0.100
50-90
1.8
450
45
1.5
HLFB Series High-frequency Direct Vibration Basic Specifications
Model
L*W*H
Rated Voltage (V)
Rated Current (A)
Vibration Frequency (Hz)
Net Weight (kg)
Max. Track Length(mm)
Max. Track Width (mm)
Max. net weight of track (kg)
Applicable Controller
LFB-02
130*22*86
100/110
0.12
100~180
1.2
180
20
0.2
C10-1VF C10-1VFEF C9-03VFTC
LFB-04
170*32*108
200/220
0.08
100~180
2.7
240
30
0.4
HLFB-02
130*22*86
100/110
0.25
220-360
1.2
180
20
0.2
HLFB-04C
170*32*108
100/110
0.30
220-360
2.7
240
30
0.4

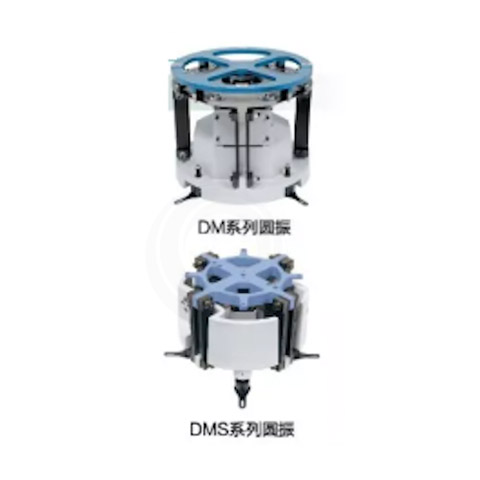

DM/DMS Series Dual-drive Intelligent Circular Vibration
The dual-drive intelligent circular vibrator is the company's first and only product in the world. This product adopts a dual-drive driving mode (other circular vibrators are single-drive). A dedicated controller is used to control the vertical amplitude and horizontal amplitude respectively, achieving low noise, damage-free, and high-speed feeding. The circular vibrator is equipped with a real-time intelligent detection system to monitor the vibration status in real time. The controller adjusts the vibration data in real time based on the detection status signal to keep the circular vibrator in the best feeding state.
This dual-drive circular vibration is the world's first and can turn left and right.
This product has been widely used in feeders for medical, electronic, automotive, and precision machinery equipment, and truly achieves full intelligence, high speed, no adjustment, and automatic feeding.
Note: Net load weight is the max. weight of the upper plate + workpiece

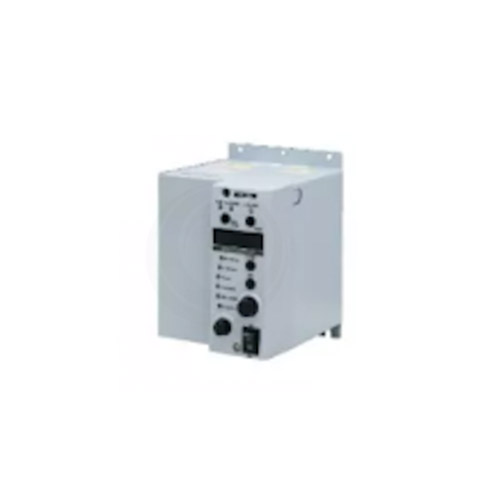

DM/DMS Series Intelligent Dual-drive Phase Controller
Unique in the world ——Dual-drive Phase Variable Frequency Controller
The electronic control method of controlling the phase difference of horizontal amplitude and vertical amplitude respectively is adopted, so that the dual-drive circular vibration can work at high speed, quietly and smoothly. Its intelligent tracking function can adjust the control parameters in real time, so that it can always feed materials in the best state.
Basic specifications of Dual-drive Circular Vibration Dedicated Phase Frequency Conversion Controller
Controller Model
C10-4DM
Input Voltage
AC200-230V±10%,50/60Hz
Input Control
The controller can be started or stopped by external signal
Output voltage
0-190V
Output control
The controller can be used to control the start and stop of external devices
Output frequency
28-45Hz 65-120Hz 90-180Hz
soft start
Start-up time: 0.2-4 seconds
Output current
Horizontal:4A Vertical:2A
On-off delay
Delay time: 0.2 seconds - 60 seconds
Intelligent tracking control
YES
Operating temperature range
0-40℃
Positioning phase difference control
Stable control of horizontal and vertical amplitude phase difference
Use humidity range
10-90% (no condensation)
Noise resistance voltage
Over 1000V
Controller net weight
2.0kg
Note: C10-4DM is only suitable for dual drive circular oscillator: DM-30C/3BC/45C/65C DMS-15C/20C/25C/30C/38C/45C

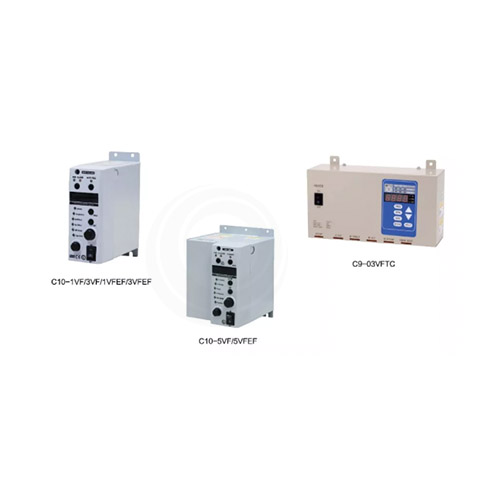

C10/C9 Series Intelligent Frequency Conversion Digital Controller
SINFONIA C10/C9 series intelligent variable frequency digital controller can effectively perform variable frequency control on all circular vibrations and direct vibrations except SINFONIA dual-drive circular vibrations. Its intelligent tracking function can sense the vibration status and respond to vibration information in real time, and adjust the control output of circular vibration and direct vibration in real time. It will no longer be manually adjusted due to the movement of the feeder, the increase of materials, and the change of the use environment. It greatly improves the stability of the feeder and saves the labor cost of multiple visits to customers for adjustment.
Name
Ordinary frequency conversion digital controller
Intelligent frequency conversion digital controller
Model
C10-1VF
C10-3VF
C10-5VF
C10-1VFEF
C10-3VFEF
C10-5VFEF
C9-03VFTC
Number of Consoles
Control one independently
Control two units at the same time
Input Voltage
AC100/230V±10%,50/60Hz
Output Voltage
When the input voltage is AC200V, the output voltage is 0-190V; when the input voltage is AC100V, the output voltage is 0-95V;
Output Frequency
Half wave: 45-90Hz; medium wave; 65-120Hz; full wave: 90-180Hz; high frequency: 180-360Hz
