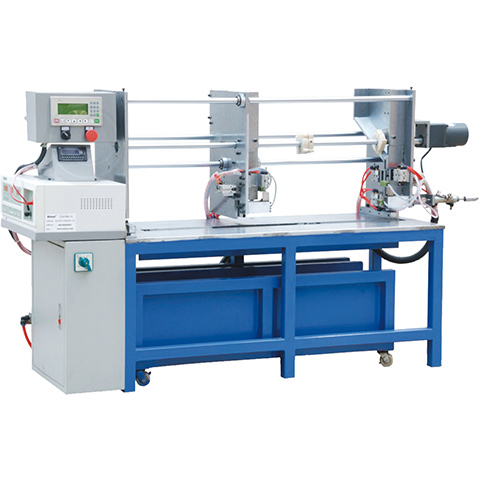

Automatic Testing Machine For Heating Elements 2

Automatic Testing Machine for heating elements

It mainly used to test resistance, Hipot test of the heating elements after passing the Rolling Mill.

Main Performance Features:

  1. Hipot test and resistance test automatically, classify the good and bad quality of heating elements automatically.
  2. PLC automatic controlled, easy to operate, no need special watching.

Technical parameters:

  1. Power Supply: single phase 220V，50Hz，500W
  2. Air Supply:5 ~ 7 kg/cm 2
  3. Production Efficiency: 5000-8000pcs/8h
  4. Applicable Tube Diameter: 6mm ~ $12 mm
  5. Applicable Tube Length: 150 mm ~ 800mm ( custom-made )
  6. Size ( L * W * H) : 1700*600*1000 ( mm )
  7. Weight: 230kg

Main Models:

ModelPower SupplyAir SupplyApplicable Tube Diameter(mm)Applicable Tube Length(mm)Production Efficiency(8h)Size ( L * W * H)(mm)Weight(kg)
CSJ01220V, 50Hz, 500W5 ~ 7 kg/cm 2 φ6 ~ φ12150 ~ 8005000-8000pcs1700*600*1000230

Videos:

Video： Automatic Testing Machine for heating elements 3
