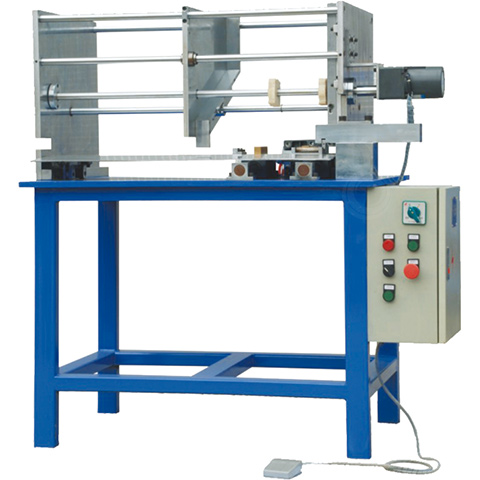

Automatic Marking Machine GY01

The automatic Marking Machine is suitable for making marks on the surface of the straight tubes or heating elements.

Main performance：

1. Automatic feeding without special care.
2. Pipe diameter, length and rolling position can be adjusted.
3. Simple operation, stable quality.

Technical parameter：

1. Power Supply: single-phase 220v, 50Hz.
2. Rated Power: 200W.
3. Air supply: 5~7kg/cm ² .
4. Applicable Tube Diameter: φ5mm~ φ20mm
5. Applicable Tube Length: 150~700mm (It can be custom-made).
6. Production Efficiency: 15000~-20000 PCS /8h.
7. Size: 1150×630×1200 (mm).
8. Weight: 230kg.
