Fin Aluminum heater Filling Machine TF05

Main Structure and Performance

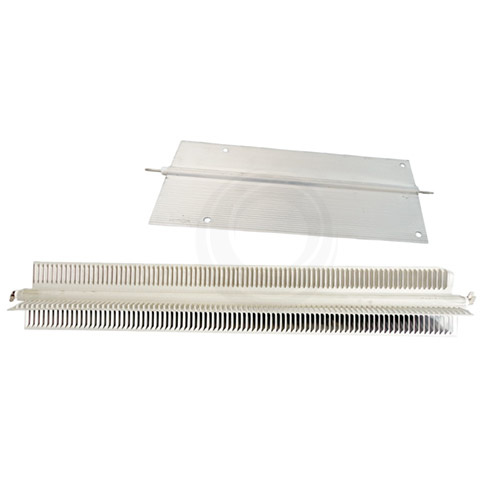

This fin aluminum heater Filling Machine is a new type of magnesium oxide Powder Filling Machine, specially designed for the diverse internal structures of fin heater.

The machine's design accommodates the required workpieces: single, dual, or triple resistance coil assemblies. Its unique vibrator structure ensures that the product is more compliant with customer process requirements.

Main Technical Parameters

1. Number of stations (pieces): X-type/Straight-type 10/19
2. Filling length (mm): 300-3000
3. Heating Coil configuration: 1, 2, or 3 sets
4. One machine for one specification
5. Control method: Servo motor/Universal motor
6. Vibration method: Mechanical, electromagnetic
7. Output (8 hours): 2000-3000 pieces (1 meter length)
8. Voltage/air source: Three-phase 380V/Three-phase 220V/Single-phase 220V/0.6 MPa (customizable)
9. Power: 1100W
10. Machine dimensions (mm): (1 meter machine) 3500*1600*800
11. Weight: 600KG
