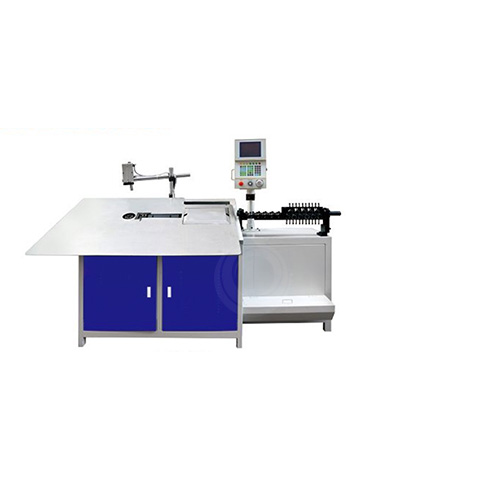

Straightening, cutting and push bending functions are equipped. No interference, one-time forming, unmanned operation. Its efficiency is 4-5 times that of traditional mode.
It is suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, Flat Wire), bend (bend) square, round, hexagonal, elliptical, irregular shapes and various flat buckles, various hooks, etc.
It is mainly designed for automobile seat frames, sun visor frames, grid couplings, special-shaped springs, pet cages, bicycle baskets, motorcycle accessories, garden flower stands, iron wire crafts, iron wire bathroom and kitchen supplies, and various wire forming. It has full processing capabilities and high processing speed and precision.
| Model/wire diameter | WX03-6(2.5~6mm） | WX03-8(3~8mm） | WX03-12(4~12mm）（the speed of 12mm type may be slower, depending on working situation） |
| Electrical voltage | Three-phase 380V+ Ground wire | Three-phase 380V+ Ground wire | Three-phase 380V+ Ground wire |
| Straightening contour | 22 groups（national standard Cr12 adopted） | 22 groups（national standard Cr12 adopted） | 28 groups（national standard Cr12 adopted） |
| Bending mold | All are made of high-quality material SKD11/51, with a hardness of 58-62° | All are made of high-quality material SKD11/51, with a hardness of 58-62° | All are made of high-quality material SKD11/51, with a hardness of 58-62° |
| Number of feeding wheels | 3 groups（national standard Cr12 adopted by feeding wheels.Fine polishing heat treatment hardness reaches 58°, resistant to abrasion） | 3 groups（national standard Cr12 adopted by feeding wheels.Fine polishing heat treatment hardness reaches 58°, resistant to abrasion） | 4 groups（national standard Cr12 adopted by feeding wheels.Fine polishing heat treatment hardness reaches 58°, resistant to abrasion） |
| Number of axes | 3 axes | 3 axes | 3 axes |
| Total rate of servo motor | 4.8kw | 4.8KW（High torque） | 6.9kw |
| Total rate of feeding servo motor | 2.3kw | 2.3KW equipped with deceleration function | 2.3KW equipped with deceleration function |
| Total rate of bending servo motor | 1.5kw | 1.5KW equipped with deceleration function | 2.3KW equipped with deceleration function |
| Total rate of blading servo motor | 1.0kw | 1.0kw | 2.3KW equipped with deceleration function |
| Cutting force | φ6 iron wires（flexible wires） | φ8 iron wires（flexible wires） | φ10、φ12 iron wires（flexible wires） |
| Applicable wires | Round wire, flat wire, square wire (applicable to any material wire) | Round wire, flat wire, square wire (applicable to any material wire) | Round wire, flat wire, square wire (applicable to any material wire) |
| Applicable wires’ range | 2.5-6mm iron wires standard | 3-8mm iron wire standard | 4-12mm iron wire standard |
| storage | 10 000 sets of data, 300 actions per set | 10 000 sets of data, 300 actions per set | 10 000 sets of data, 300 actions per set |
| Feeding speed | Fastest: 90m/min | Fastest: 24m/min | Fastest:18 m/min |
| Maximum bending speed | 300 rpm, angle ±180° | 300 rpm, angle ±180° | 300 rpm, angle ±360° |
| Direction of action | Inner mold - move down/up, Outer mold - move down/up, 360° clockwise and counterclockwise | Inner mold - move down/up, Outer mold - move down/up, 360° clockwise and counterclockwise | Inner mold - move down/up, Outer mold - move down/up, 360° clockwise and counterclockwise |
| Efficiency | 20-25 pcs/min（Take 200*200 square as an example） | 20-25 pcs/min（Take 200*200 square as an example） | 8-10 pcs/min（Take 200*200 square as an example） |
| Bending accuracy | ±0.5° | ±0.5° | ±0.5° |
| Feeding accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Pneumatic system | cylinder | 3 | 3 | 3 |
| Solenoid valve | 3 | 3 | 3 |
| Servo system | Language system | English/Chinese（uploading and downloading functions are equipped） | English/Chinese（uploading and downloading functions are equipped） | English/Chinese（uploading and downloading functions are equipped） |
| Control screen | Touch screen＋buttons | Touch screen＋buttons | Touch screen＋buttons |
| Control Module | 32-bit high-performance processor | 32-bit high-performance processor | 32-bit high-performance processor |
| Size | 2800*850*1500 | 2800*850*1500 | 3150*785 *1800 (estimation) |
| Machine weight | 1100KG | 1200KG | 1500KG |
