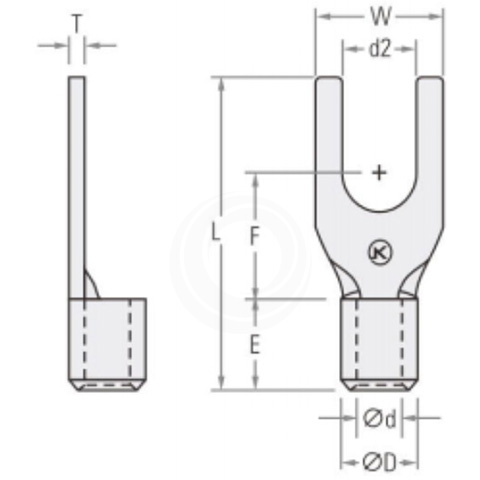

无绝缘护套叉形端子(适用于软线)
- 材料: :紫铜带
- 表面处理: 封焊 镀锡
- 符合标准: ROHS3
型号 | 导线 截面 (mm) | 材料厚度 (mm) | 最大 电流 | 美制螺栓号 | 螺栓口直径(mm) | 尺寸(mm) |
| | T | | | d2 | W | L | F | E | ΦD | Φd |
STP 0.5-3 | 0.2-0.75 (24-18) | 0.5 | 10A | #4 | 3.1 | 5.8 | 14.2 | 5.1 | 4.3 | 2.3 | 1.3 |
STP 0.5-4 | #8 | 4.3 | 6.4 | 14.2 | 5.3 |
| | | | | | | | | 4.8 | 3.4 | 1.7 |
STP 1.25-3 | 0.5-1.5 (22-16) | 0.75 | 19A | #4 | 3.2 | 5.7 | 16.0 | 6.5 |
STP 1.25-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 |
STP 1.25-3.5L | #6 | 3.7 | 6.4 | 16.0 | 6.5 |
STP 1.25.4S | #8 | 4.3 | 6.4 | 16.0 | 6.2 |
STP 1.25-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 |
STP 1.25-4L | #8 | 4.3 | 8.1 | 16.0 | 6.5 |
STP 1.25-5S | #10 | 5.3 | 8.1 | 16.0 | 6.2 |
STP 1.25-5L | #10 | 5.3 | 9.5 | 16.0 | 6.5 |
STP 1.25-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 |
STP 1.25-6L | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 |
| | | | | | | | | | | |
STP 2-3 | 1.5-2.5 (16-14) | 0.8 | 27A | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
STP 2-3.5S | #6 | 3.7 | 5.7 | 16.0 | 6.5 |
STP 2-3.5L | #6 | 3.7 | 6.2 | 16.0 | 6.0 |
STP 2-4S | #8 | 4.3 | 6.4 | 16.0 | 6.0 |
STP 2-4M | #8 | 4.3 | 7.2 | 16.0 | 6.5 |
STP 2-4L | #8 | 4.3 | 8.1 | 16.0 | 6.0 |
STP 2-5S | #10 | 5.3 | 8.1 | 16.0 | 6.5 |
STP 2-5L | #10 | 5.3 | 9.3 | 16.0 | 6.5 |
STP 2-6S | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 |
STP 2-6LF | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 |
| | | | | | | | | | | |
STP 3.5-3 | 2.5-4 (14-12) | 1.0 | 37A | #4 | 3.2 | 5.7 | 18.3 | 7.0 | 6.5 | 5.0 | 3.0 |
STP 3.5-4S | #8 | 4.3 | 7.2 | 18.3 | 7.0 |
STP 3.5-4 | #8 | 4.3 | 8.0 | 18.3 | 7.0 |
STP 3.5-5 | #10 | 5.3 | 8.0 | 18.3 | 7.0 |
STP 3.5-6 | 1/4 | 6.4 | 12.0 | 21.5 | 8.7 |
| | | | | | | | | | | |
STP 5.5-3.5 | 4-6 (12-10) | 1.0 | 48A | #6 | 3.7 | 7.2 | 18.2 | 7.5 | 6.8 | 5.6 | 3.4 |
STP 5.5-4S | #8 | 4.3 | 8.3 | 19.5 | 7.5 |
STP 5.5-4L | #8 | 4.3 | 9.0 | 19.5 | 7.5 |
STP 5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 |
STP 5.5-6S | 1/4 | 6.4 | 9.0 | 19.5 | 7.5 |
STP 5.5-6L | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 |
STP 5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 |
| | | | | | | | | | | |
STP 8-4 | 6-10 (8) | 1.2 | 62A | #8 | 4.3 | 8.7 | 23.0 | 82. | 8.5 | 7.2 | 4.5 |
STP 8-5 | #10 | 5.3 | 11.0 | 23.5 | 8.0 |
STP 8-6 | 1/4 | 6.4 | 12.0 | 24.0 | 9.6 |
STP 8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 11.4 |
| | | | | | | | | | | |
STP 14-6 | 10-16 (6) | 1.4 | 88A | 1/4 | 6.4 | 12.0 | 28.0 | 10.3 | 10.5 | 9.0 | 5.8 |
STP 14-8 | 5/16 | 8.4 | 13.7 | 28.0 | 10.0 |
| | | | | | | | | | | |
STP 22-8 | 16-25(4) | 1.7 | 115A | 5/16 | 8.4 | 14.0 | 34.5 | 9 | 12.0 | 11.5 | 7.7 |

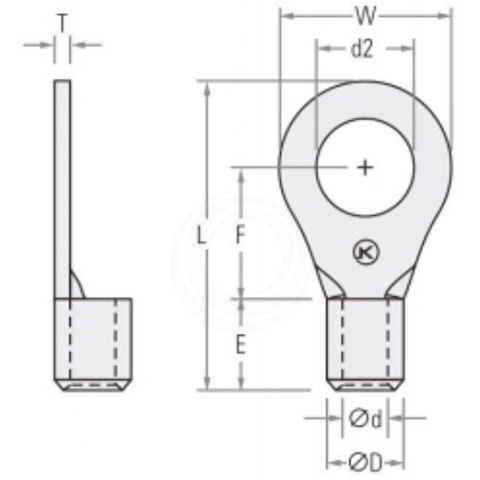

无绝缘圆形端子(适用于软线)
- 材料:紫铜带
- 表面虑理:封焊 镀锡
- 符合标准: ROHS3
型号 | 导线截面 (mm) | 材料厚度 (mm) | 最大电流 | 美制螺栓号 | 螺栓口直径(mm) | 尺寸(mm) |
| | T | | | d2 | W | L | F | E | ΦD | Φd |
RTP 0.5-3 | 0.2-0.75 (24-18) | 0.5 | 10A | #4 | 3.2 | 5.7 | 12.6 | 5.4 | 4.3 | 2.3 | 1.3 |
RTP 0.5-3.5S | #6 | 3.7 | 5.7 | 12.6 | 5.4 |
RTP 0.5-3.5M | #6 | 3.7 | 6.6 | 14.1 | 6.3 |
RTP 0.5-4 | #8 | 4.3 | 6.6 | 14.1 | 6.3 |
|
RTP 1.25-3 | 0.5-1.5 (22-16) | 0.75 | 19A | #4 | 3.2 | 5.7 | 12.6 | 4.9 | 4.8 | 3.4 | 1.7 |
RTP 1.25-3.5S | #6 | 3.7 | 5.7 | 12.6 | 4.9 |
RTP 1.25-3.5M | #6 | 3.7 | 6.6 | 14.4 | 6.3 |
RTP 1.25-3.5L | #6 | 3.7 | 8.0 | 15.8 | 7.0 |
RTP 1.25-4S | #8 | 4.3 | 6.6 | 14.4 | 6.3 |
RTP 1.25-4L | #8 | 4.3 | 8.0 | 15.8 | 7.0 |
RTP 1.25-5S | #10 | 5.3 | 8.0 | 15.8 | 7.0 |
RTP 1.25-5L | #10 | 5.3 | 9.8 | 17.6 | 7.6 |
RTP 1.25-6S | 1/4 | 6.4 | 9.8 | 17.6 | 7.6 |
RTP 1.25-6L | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 |
RTP 1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 |
RTP 1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 |
RTP 1.25-12 | 1/2 | 13.0 | 19.2 | 30.5 | 16.5 |
| | | | | | | | | | | |
RTP 2-3 | 1.5-2.5 (16-14) | 0.8 | 27A | #4 | 3.2 | 6.6 | 13.0 | 4.3 | 4.8 | 4.1 | 2.3 |
RTP 2-3.5S | #6 | 3.7 | 6.6 | 13.0 | 4.7 |
RTP 2-3.5M | #6 | 3.7 | 6.6 | 14.5 | 6.0 |
RTP 2-3.5L | #6 | 3.7 | 8.5 | 16.8 | 7.7 |
RTP 2-4S | #8 | 4.3 | 8.6 | 14.5 | 6.5 |
RTP 2-4L | #8 | 4.3 | 8.5 | 16.8 | 7.7 |
RTP 2-5S | #10 | 5.3 | 8.5 | 16.8 | 7.7 |
RTP 2-5L | #10 | 5.3 | 9.5 | 16.8 | 7.0 |
RTP 2-6S | 1/4 | 6.4 | 9.5 | 16.8 | 7.0 |
RTP 2-6L | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 |
RTP 2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 |
RTP 2-10 | 3/8 | 10.5 | 14.6 | 25.5 | 13.0 |
RTP 2-12 | 1/2 | 13.0 | 19.2 | 30.4 | 15.5 |
|
RTP 3.5-4 | 2.5-4.0 (14-12) | 1.0 | 37A | #8 | 4.3 | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
RTP 3.5-5S | #10 | 5.3 | 8.0 | 18.0 | 7.7 |
RTP 3.5-5L | #10 | 5.3 | 12.0 | 21.4 | 9.3 |
RTP 3.5-6 | 1/4 | 6.4 | 12.0 | 21.4 | 9.3 |
RTP 3.5-8 | 5/16 | 8.4 | 15.0 | 27.5 | 14 |
RTP 3.5-10 | 3/8 | 10.5 | 15.0 | 27.5 | 14 |
|
RTP 5.5-3 | 4.0-6.0 (12-10) | 1.0 | 48A | #4 | 3.2 | 7.2 | 16.2 | 6.6 | 6.8 | 5.6 | 3.4 |
RTP 5.5-3.5 | #6 | 3.7 | 7.2 | 16.5 | 5.9 |
RTP 5.5-4S | #8 | 4.3 | 7.2 | 16.2 | 5.9 |
RTP 5.5-4L | #8 | 4.3 | 9.5 | 19.8 | 8.3 |
RTP 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 |
RTP 5.5-6 | 1/4 | 6.4 | 12.0 | 23.5 | 11.0 |
RTP 5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 |
RTP 5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 |
RTP 5.5-12 | 1/2 | 13.0 | 19.2 | 32.4 | 16.0 |
| | | | | | | | | | | |
RTP 8-4 | 6.0-10 (8) | 1.2 | 62A | #8 | 4.3 | 8.8 | 23.8 | 11.0 | 8.5 | 7.2 | 4.5 |
RTP 8-4L | #8 | 4.3 | 12.0 | 23.8 | 9.3 |
RTP 8-5S | #10 | 5.3 | 8.8 | 23.8 | 11.3 |
RTP 8-5M | #10 | 5.3 | 12.0 | 23.8 | 9.3 |
RTP 8-5L | #10 | 5.3 | 15.0 | 29.8 | 13.8 |
RTP 8-6S | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 |
RTP 8-6L | 1/4 | 6.4 | 15.0 | 29.8 | 14.0 |
RTP 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 |
RTP 8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 |
RTP 8-12 | 1/2 | 13.0 | 22.0 | 39.5 | 20.5 |
| | | | | | | | | | | |
RTP 14-4 | 10-16 (6) | 1.4 | 88A | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.0 | 6.2 |
RTP 14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 |
RTP 14-6S | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 |
RTP 14-6L | 1/4 | 6.4 | 16.0 | 32.8 | 14.3 |
RTP 14-8 | 5/16 | 6.4 | 16.0 | 32.8 | 14.3 |
RTP 14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.5 |
RTP 14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 |
RTP 14-14 | 9/16 | 15.0 | 30.0 | 51.0 | 25.0 |
RTP 14-16 | 5/8 | 17.0 | 30.0 | 51.0 | 26.0 |
RTP 14-18 | 11/16 | 19.0 | 30.0 | 51.0 | 27.0 |
RTP 14-20 | 3/4 | 21.0 | 30.0 | 51.0 | 28.0 |
| | | | | | | | | | | |
RTP 22-5S | 16-25 (4) | 1.7 | 115A | #10 | 5.3 | 12.2 | 33.0 | 15.0 | 4.3 | 2.3 | 1.3 |
RTP 22-5L | #10 | 5.3 | 16.5 | 33.7 | 14.0 |
RTP 22-6S | 1/4 | 6.4 | 12.2 | 33.2 | 15.0 | 12.0 | 11.6 | 8.2 |
RTP 22-6L | 1/4 | 6.4 | 16.5 | 33.7 | 14.0 |
RTP 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 |
RTP 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 |
RTP 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 |
RTP 22-14 | 9/16 | 15.0 | 30.0 | 51.0 | 24.0 |
RTP 22-16 | 5/8 | 17.0 | 30.0 | 51.0 | 25.0 |
RTP 22-18 | 11/16 | 19.0 | 30.0 | 51.0 | 26.0 |
RTP 22-20 | 3/4 | 21.0 | 30.0 | 51.0 | 27.0 |
| | | | | | | | | | | |
RTP 38-5 | 35-50 (2) | 0.8 | 160A | #10 | 5.3 | 15.3 | 39.0 | 18.0 | 14.0 | 13.3 | 9.4 |
RTP 38-6 | 1/4 | 6.4 | 15.3 | 39.0 | 18.0 |
RTP 38-6L | 1/4 | 6.4 | 22.0 | 42.7 | 17.7 |
RTP 38-8S | 5/16 | 8.4 | 15.3 | 39.0 | 18.0 |
RTP 38-8L | 5/16 | 8.4 | 22.0 | 42.7 | 17.7 |
RTP 38-10S | 3/8 | 10.5 | 15.3 | 39.0 | 18.0 |
RTP 38-10L | 3/8 | 10.5 | 22.0 | 42.7 | 17.7 |
RTP 38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 |
RTP 38-14 | 9/16 | 15.0 | 30.0 | 52.2 | 22.5 |
RTP 38-16 | 5/8 | 17.0 | 30.0 | 52.2 | 23.5 |
RTP 38-18 | | | | 11/16 | 19.0 | 30.0 | 52.2 | 245 |
RTP 38-20 | | | | 3/4 | 21.0 | 30.0 | 52.2 | 23.0 |
| | | | | | | | | | | |
RTP 60-6 | 50-70 (1/0) | 1.7 | 215A | 1/4 | 6.4 | 22.0 | 49.7 | 20.7 | 18.0 | 15.4 | 12.0 |
RTP 60-8 | 5/16 | 8.4 | 22.0 | 49.7 | 20.7 |
RTP 60-10 | 3/8 | 10.5 | 22.0 | 49.7 | 20.7 |
RTP 60-12 | 1/2 | 13.0 | 22.0 | 49.7 | 20.7 |
RTP 60-14 | 9/16 | 15.0 | 32.0 | 49.7 | 23.5 |
RTP 60-16 | 5/8 | 17.0 | 32.0 | 57.5 | 23.5 |
RTP 60-18 | 11/16 | 19.0 | 32.0 | 57.5 | 23.5 |
RTP 60-20 | 3/4 | 21.0 | 32.0 | 57.5 | 23.5 |
RTP 60-22 | 7/8 | 22.0 | 32.0 | 57.5 | 23.5 |
| | | | | | | | | | | |
RTP 70-6 | 70-95 (2/0) | 2.0 | 235A | 1/4 | 6.4 | 24.0 | 51.0 | 20.0 | 19.0 | 17.5 | 13.5 |
RTP 70-8 | 5/16 | 8.4 | 24.0 | 51.0 | 20.0 |
RTP 70-10 | 3/8 | 10.5 | 24.0 | 51.0 | 20.0 |
RTP 70-12 | 1/2 | 13.0 | 24.0 | 51.0 | 20.0 |
RTP 70-14 | 9/16 | 15.0 | 32.0 | 61.0 | 26.0 |
RTP 70-16 | 5/8 | 17.0 | 32.0 | 61.0 | 26.0 |
RTP 70-18 | 11/16 | 19.0 | 32.0 | 61.0 | 26.0 |
RTP 70-20 | 3/4 | 21.0 | 32.0 | 61.0 | 26.0 |
RTP 70-22 | 7/8 | 23.0 | 32.0 | 61.0 | 26.0 |
|
RTP 80-6 | 95-120 (3/0) | 2.2 | 255A | 1/4 | 6.4 | 27.0 | 54.2 | 22.7 | 20.0 | 19.5 | 15.0 |
RTP 80-8 | 5/16 | 8.4 | 27.0 | 54.2 | 22.7 |
RTP 80-10 | 3/8 | 10.5 | 27.0 | 54.2 | 22.7 |
RTP 80-12 | 1/2 | 13.0 | 27.0 | 54.2 | 22.7 |
RTP 80-14 | 9/16 | 15.0 | 32.0 | 68.0 | 32.0 |
RTP 80-16 | 5/8 | 17.0 | 32.0 | 68.0 | 32.0 |
RTP 80-18 | 11/16 | 19.0 | 32.0 | 68.0 | 32.0 |
RTP 80-20 | 3/4 | 21.0 | 32.0 | 68.0 | 32.0 |
RTP 80-22 | 7/8 | 23.0 | 32.0 | 68.0 | 32.0 |
| | | | | | | | | | | |
RTP 100-6 | 120-150 (4/0) | 2.6 | 300A | 1/4 | 6.4 | 27.0 | 54.2 | 22.7 | 20.0 | 19.5 | 15.0 |
RTP 100-8 | 5/16 | 8.4 | 27.0 | 54.2 | 22.7 |
RTP 100-10 | 3/8 | 10.5 | 27.0 | 54.2 | 22.7 |
RTP 100-12 | 1/2 | 13.0 | 27.0 | 54.2 | 22.7 |
RTP 100-14 | 9/16 | 15.0 | 32.0 | 68.0 | 32.0 |
RTP 100-16 | 5/8 | 17.0 | 32.0 | 68.0 | 32.0 |
RTP 100-18 | 11/16 | 19.0 | 32.0 | 68.0 | 32.0 |
RTP 100-20 | 3/4 | 21.0 | 32.0 | 68.0 | 32.0 |
RTP 100-22 | 7/8 | 23.0 | 32.0 | 68.0 | 32.0 |
| | | | | | | | | | | |
RTP 150-8 | 150-185 (250/300) | 3.2 | 395A | 5/16 | 8.4 | 36.5 | 66.0 | 23.0 | 27.0 | 27.0 | 20.0 |
RTP 150-10 | 3/8 | 10.5 | 36.5 | 66.0 | 23.0 |
RTP 150-12 | 1/2 | 13.0 | 36.5 | 66.0 | 23.0 |
RTP 150-14 | 9/16 | 15.0 | 36.5 | 66.0 | 23.0 |
RTP 150-16 | 5/8 | 17.0 | 36.5 | 66.0 | 23.0 |
RTP 150-18 | 11/16 | 19.0 | 36.5 | 66.0 | 23.0 |
RTP 150-20 | 3/4 | 21.0 | 36.5 | 66.0 | 23.0 |
RTP 150-22 | 7/8 | 23.0 | 36 | 81.0 | 36.0 |
RTP 150-24 | 15/16 | 25.0 | 36 | 81.0 | 36.0 |
RTP 150-27 | 1 | 28.0 | 36 | 81.0 | 36.0 |
| | | | | | | | | | | |
RTP 180-8 | 185-240 (300/350) | 3.5 | 440A | 5/16 | 8.4 | 38.5 | 69.0 | 23.5 | 28.5 | 28.6 | 21.0 |
RTP 180-10 | 3/8 | 10.5 | 38.5 | 69.0 | 23.5 |
RTP 180-12 | 1/2 | 13.0 | 38.5 | 69.0 | 23.5 |
RTP 180-14 | 9/16 | 15.0 | 38.5 | 69.0 | 23.5 |
RTP 180-16 | 5/8 | 17.0 | 38.5 | 69.0 | 23.5 |
RTP 180-18 | 11/16 | 19.0 | 38.5 | 69.0 | 23.5 |
RTP 180-20 | 3/4 | 21.0 | 38.5 | 69.0 | 23.5 |
RTP 180-22 | 7/8 | 23.0 | 38.5 | 69.0 | 23.5 |
RTP 180-24 | 15/16 | 25.0 | 38.5 | 86.6 | 39.0 |
RTP 180-27 | 1 | 28.0 | 38.5 | 86.6 | 39.0 |
| | | | | | | | | | | |
RTP 200-8 | 240-300 (400/500) | 4.0 | 470A | 5/16 | 8.4 | 44.0 | 78.0 | 24.5 | 31.5 | 32.6 | 24.0 |
RTP 200-10 | 3/8 | 10.5 |
RTP 200-12 | 1/2 | 13.0 |
RTP 200-14 | 9/16 | 15.0 |
RTP 200-16 | 5/8 | 17.0 |
RTP 200-18 | 11/16 | 19.0 |
RTP 200-20 | 3/4 | 21.0 |
RTP 200-22 | 7/8 | 23.0 |
RTP 200-24 | 15/16 | 25.0 |
RTP 200-27 | 1 | 28.0 | 44.0 | 91.0 | 37.5 |
| | | | | | | | | | | |
RTP 325-8 | 300-400 (500/600) | 4.2 | 650A | 5/16 | 8.4 | 50.5 | 87.5 | 26.0 | 35.5 | 37.1 | 28.5 |
RTP 325-10 | 3/8 | 10.5 |
RTP 325-12 | 1/2 | 13.0 |
RTP 325-14 | 9/16 | 15.0 |
RTP 325-16 | 5/8 | 17.0 |
RTP 325-18 | 11/16 | 19.0 |
RTP 325-20 | 3/4 | 21.0 |
RTP 325-22 | 7/8 | 23.0 |
RTP 325-24 | 15/16 | 25.0 |
RTP 325-27 | 1 | 28.0 |

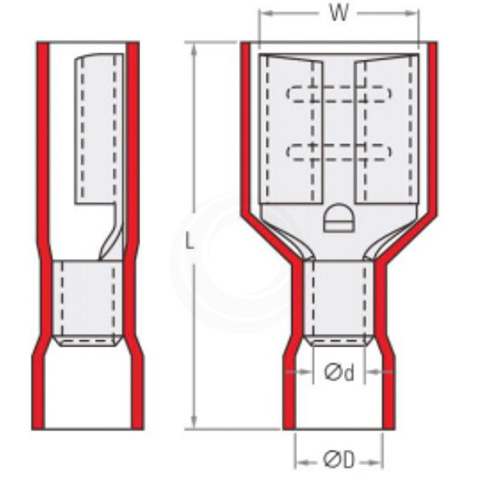

PVC全绝缘护套母插端子(适用于软线)
- 材料::黄铜
- 表面处理: 封焊,镀锡
- 护套: PVC
- 符合标准: ROHS3
型号 | 导线截面 (mm 2 ) | 最大电流 | 材料厚度 (mm) | 插接规格 | 尺寸(mm) | 颜色 Color |
| | | | | W | L | ΦD | Φd | |
FDTP 1.25-187(5) | 0.5-1.5 (22-16) | 10A | 0.4 | 0.5x4.75 | 5.0 | 20.0 | 3.7 | 1.7 | RED |
FDTP 1.25-187(8) | 0.8x4.75 | 5.0 | 20.0 |
FDTP 1.25-250 | 0.8x6.35 | 6.6 | 22.5 |
| | | | | | | | | |
FDTP 2-187(5) | 0.5-1.5 (16-14) | 15A | 0.4 | 0.5x4.75 | 5.0 | 20.0 | 4.1 | 2.3 | BLUE |
FDTP 2-187(8) | 0.8x4.75 | 5.0 | 20.0 |
FDTP 2-250 | 0.8x6.35 | 6.6 | 23.5 |
| | | | | | | | | |
FDTP 5.5-250 | 4-6 (12-10) | 24A | 0.4 | 0.8x6.35 | 6.6 | 24.0 | 5.4 | 3.4 | YELLOW |
